P3.91mm Pixel Pitch IP65 Waterproof Outdoor LED Display Screen with 3840-7680Hz Refresh Rate
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LED KING |
| Model Number: | Outdoor P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $170-180 |
|
Detail Information |
|||
| Pixel Pitch: | 3.91mm | Brightness: | 4500-5000 Cd/m² |
|---|---|---|---|
| Color Depth: | 16-Bit | Color Temperature: | 2000K~10000K |
| Contrast Ratio: | 4000:1 | Operating Temperature: | -10-45C° |
| Pixel Density: | 65536 Dot/m² | Power Consumption: | 600W/m² |
| Power Supply: | 110V-220V | Refresh Rate: | 3840-7680HZ |
| Resolution: | 128 Dot*256 Dot | Viewing Angle: | 170° |
| Waterproof Rating: | IP65 | Cabinet Size: | 500*1000mm |
| Life Span: | 100000Hours | ||
| Highlight: | P3.91mm Pixel Pitch LED Video Wall,IP65 Waterproof Digital Billboard,3840-7680Hz Refresh Rate Outdoor LED Display Screen |
||
Product Description

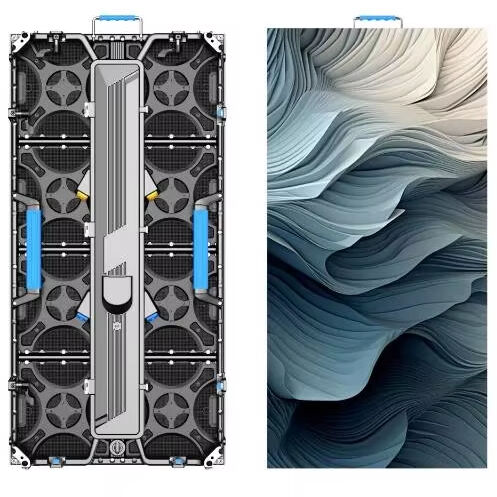

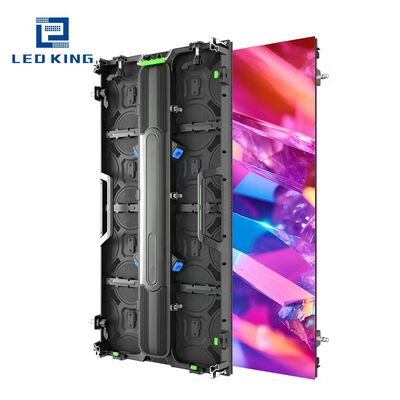

P3.91 Outdoor LED Screen - 500×1000mm Display Panel
High-quality outdoor LED display screen featuring IP65 waterproof rating, die-casting aluminum cabinet, and excellent visibility for various commercial applications.
Product Overview
Technical Specifications
| Specification | Value |
|---|---|
| Application | Outdoor |
| Pixel Pitch | 3.91mm |
| Display Type | LED |
| Warranty | 2 Years |
| Brightness | 4500-5000 cd/m² |
| Color Depth | 16-Bit |
| Contrast Ratio | 4000:1 |
| Refresh Rate | 3840-7680Hz |
| Resolution | 128×256 dots |
| Viewing Angle | 170° |
| Waterproof Rating | IP65 |
| Cabinet Material | Die-casting Aluminum |
| Cabinet Size | 500×1000mm |
| Panel Size | 250×250mm |
| Power Consumption | 600W/m² |
| Operating Temperature | -10°C to +45°C |
| Life Span | 100,000 Hours |
| Certifications | CE, FCC |
Key Features
- IP65 waterproof rating for outdoor use
- Die-casting aluminum cabinet for durability
- High brightness (4500-5000 cd/m²) for sunlight readability
- Wide 170° viewing angle
- Remote content management and real-time monitoring
- Third-party CMS compatible
- Multiple mounting options available
- Front/Rear service access
Application Environments
Shop windows, mobile displays, hotels, airports, stores, commercial spaces, rental events, schools, marketing displays, restaurants, subways, airplanes, advertising, churches, exhibitions, outdoor stage events, and stage backgrounds.
Control System & Management
NOVA Star control system with remote device management capabilities including remote content management, real-time status monitoring, cloud-based RDM platform, and remote power control.
Product Comparison
| Pixel Pitch | 2.5mm | 2.976mm | 3.91mm | 4.81mm |
|---|---|---|---|---|
| LED Module Size | 250×250mm | 250×250mm | 250×250mm | 250×250mm |
| LED Panel Size | 500×500mm | 500×500mm | 500×500mm | 500×500mm |
| Refresh Rate | 3840Hz | 3840Hz | 1920-3840Hz | 3840Hz |
| Brightness | 1000nits | 1000nits | 1000nits | 1200nits |
| Best Viewing Distance | 2-20m | 3-30m | 3-30m | 4-40m |
Frequently Asked Questions
What is the control system? How is it?
We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/WIFI/iPad/Laptop/PC/Cloud control. It's very easy and convenient to control.
Can I have a sample order for LED screen?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Is it OK to print my logo on product?
Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
What is your best service?
- One to one sales engineer to customer responsibility system
- Know your project and provide the best solution for it
- Track your order and let you know each step and detail
- Teach you how to install and use the screen
- Care for subsequent use and ensure proper after-sales service
How about your delivery time?
Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
How about your Warranty Term?
2-year warranty. We have professional after-sale team to solve any questions after you place an order. Your exclusive sales engineer will also help you get over any problems.
About LED King Technology
Shenzhen LED King Technology Co., Ltd. is founded by a professional team specializing in LED display solutions. Based in Guangdong, China, we serve customers worldwide with quality products and comprehensive support.
