Outdoor LED Display Screen with IP65 Waterproof 4500-5500cd Brightness and 3840-7680Hz Refresh Rate for Digital Billboard
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING |
| Model Number: | Outdoor P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $394-436 |
|
Detail Information |
|||
| Pixel Pitch: | 5MM | Brightness: | 4500-5500cd |
|---|---|---|---|
| Color Depth: | 16-Bit | Color Temperature: | 2000K~10000K |
| Contrast Ratio: | 4000:1 | Pixel Density: | 40000 Dot/㎡ |
| Power Consumption: | 488W/㎡ | Power Supply: | 110V-220V |
| Refresh Rate: | 3840-7680HZ | Resolution: | 192x192 |
| Viewing Angle: | 140° | Waterproof Rating: | IP65 |
| Operating Temperature: | -10°C-45°C | Module Size: | 320x160mm |
| Cabinet Size: | 960x960mm | ||
| Highlight: | IP65 Waterproof LED Video Wall,4500-5500cd Brightness Outdoor LED Display Screen,3840-7680Hz Refresh Rate Digital Billboard |
||
Product Description
Outdoor Fixed LED Display P5 Video Wall Panel
High-performance outdoor LED display panels designed for creating stunning video walls and digital billboards. These P5 960×960mm panels deliver exceptional brightness and clarity for various commercial and advertising applications.
Technical Specifications
| Model Number | Outdoor P5 |
| Pixel Pitch | 5MM |
| Pixel Density | 40,000 dots/㎡ |
| Resolution per Cabinet | 192×192 |
| Cabinet Size | 960×960mm |

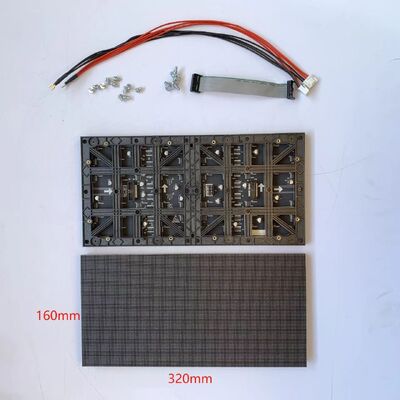

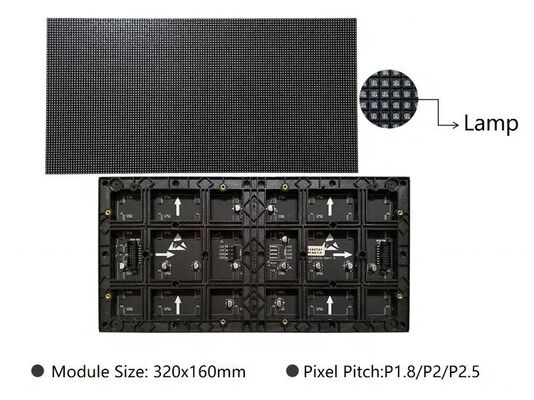

| Module Size | 320×160mm |
| Brightness | 4500-5500 cd/㎡ |
| Color Temperature | 2000K~10000K |
| Viewing Angle | 140° |
| Contrast Ratio | 4000:1 |
| Refresh Rate | 3840-7680Hz |
| Color Depth | 16-Bit |
| Pixel Configuration | 1R1G1B |
| Scan Rate | 1/8S |
| Power Consumption | 488W/㎡ |
| Power Supply | 110V-220V |
| Operating Temperature | -10°C to 45°C |
| Waterproof Rating | IP65 |
| Life Span | 100,000 Hours |
| Cabinet Material | Waterproof Iron Cabinet |
| Control System | NOVA Star |
| IC Driver | Chipone ICN2153 |
| Service Access | Front/Rear Service |
| Mounting Options | Floor Stand, Custom Mount |
| Sunlight Readable | Yes |
| Certifications | CE, FCC |
| Warranty | 2 Years |
Key Features
- High brightness for excellent outdoor visibility
- IP65 waterproof rating for all-weather operation
- Remote content management and real-time monitoring
- Third-party CMS compatibility
- Front and rear service access for easy maintenance
- Long lifespan of 100,000 hours
Applications

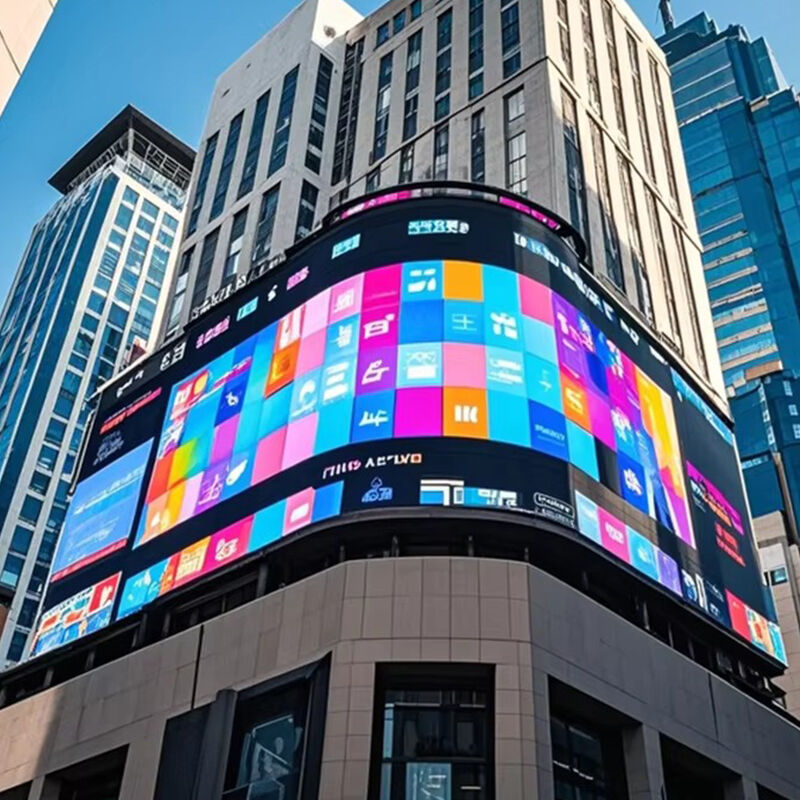

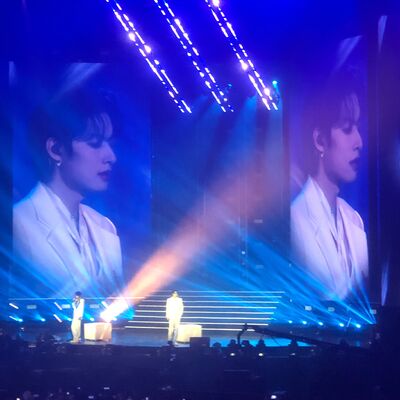

Ideal for outdoor advertising, commercial displays, retail stores, shopping malls, airports, parks, streets, stages, and various fixed installation environments.
