Customized P10 Pixel Pitch Outdoor LED Display Screen with IP65 Waterproof and 5000-7000 cd/m² Brightness for Digital Billboard
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING |
| Model Number: | Outdoor P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $559-570 |
|
Detail Information |
|||
| Pixel Pitch: | 10mm | Brightness: | 5000-7000 Cd/m² |
|---|---|---|---|
| Color Depth: | 16-Bit | Color Temperature: | 2000K~10000K |
| Contrast Ratio: | 4000:1 | Power Consumption: | 650W/m² |
| Power Supply: | 110V-220V | Refresh Rate: | 3840-7680HZ |
| Resolution: | 98 Dot*98 Dot | Viewing Angle: | 140° |
| Waterproof Rating: | IP65 | Operating Temperature: | -10C°~45C° |
| Cabinet Size: | 960*960mm | LED Specification: | SMD 3535 |
| Pixel Configuration: | 1R1G1B | ||
| Highlight: | P10 Pixel Pitch LED Video Wall,IP65 Waterproof Outdoor LED Display Screen,5000-7000 cd/m² Brightness Digital Billboard |
||
Product Description
Customized 3D Advertising LED Video Wall Screen
Product Overview

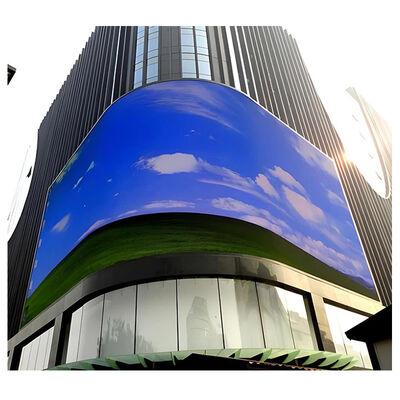

Our Outdoor P10 Curved LED Screen Display is engineered for high-impact 3D advertising and commercial digital billboard applications. This advanced video wall solution delivers stunning visual performance with exceptional brightness and clarity for outdoor environments.
Technical Specifications
| Product Type | LED Display Screen |
| Model Number | Outdoor P10 |
| Pixel Pitch | 10mm |
| Pixel Density | 10,000 dots/m² |
| Brightness | 5000-7000 cd/m² |
| Color Temperature | 2000K~10000K |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 140° |
| Refresh Rate | 3840-7680Hz |
| Color Depth | 16-Bit |
| Scan Rate | 1/2S |
| Power Consumption | 650W/m² |
| Operating Temperature | -10°C to 45°C |
| Waterproof Rating | IP65 |
| Life Span | 100,000 Hours |
| Warranty | 2 Years |
| Cabinet Material | Waterproof Iron |
| Cabinet Size | 960×960mm |
| LED Specification | SMD 3535 |
| Pixel Configuration | 1R1G1B |
| IC Chip | Chipone ICN2153 |
| Control System | NOVA Star |
| Power Supply | 110V-220V |
| Mounting Options | Custom Mount, Wall Mount |
| Service Access | Rear Service |
| Certifications | CE, FCC |
Key Features
- High brightness (5000-7000 cd/m²) for excellent sunlight readability
- IP65 waterproof rating for reliable outdoor performance
- Advanced remote device management capabilities
- Third-party CMS compatible for flexible content management
- Real-time status monitoring and remote power control
- Cloud-based remote management platform
- Curved design for immersive 3D advertising effects
- Long lifespan of 100,000 hours
Applications
Ideal for hotels, outdoor advertising, airports, shopping malls, retail stores, restaurants, highways, streets, beaches, exhibition halls, wayfinding systems, and welcome displays.
Manufacturer Profile
Shenzhen LED King Technology Co., Ltd. is a professional LED display manufacturer founded by an experienced team dedicated to providing high-quality LED screen solutions with comprehensive technical support and customer service.
Professional Support & Customization
Most units feature Kinglight technology and 3840Hz refresh rate. For custom pixel pitch requirements and detailed technical specifications, please contact our engineering team for personalized solutions.
Frequently Asked Questions
What control system do you use and how does it work?
We use Nova Taurus Series asynchronous control system that supports cluster play and management. The system is compatible with APP/Phone/WIFI/iPad/Laptop/PC/Cloud control for easy and convenient operation.
Can I place a sample order for the LED screen?
Yes, we welcome sample orders to test and verify quality. Mixed samples are acceptable for evaluation purposes.
Is custom logo printing available?
Yes, we can print your logo on the product. Please inform us formally before production and confirm the design based on our provided sample.
What services do you provide?
- One-to-one sales engineer responsibility system
- Project analysis and optimal solution provision
- Comprehensive order tracking with detailed updates
- Installation and usage training
- Ongoing after-sales support and maintenance
What is your delivery time?
Generally, delivery takes 7-15 days after receiving your deposit. Specific timing depends on the items and quantity of your order.
What is your warranty policy?
We provide a 2-year warranty covering structure design, installation issues, system problems, and usage guidance. Our professional after-sales team is available to resolve any questions after order placement, with dedicated sales engineer support.
