Outdoor LED Video Wall with IP65 Waterproof 4500-5500cd/㎡ Brightness and 960x960mm Cabinet Size
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING |
| Model Number: | Outdoor P6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $458-480 |
|
Detail Information |
|||
| Pixel Pitch: | 6MM | Brightness: | 4500-5500cd/㎡ |
|---|---|---|---|
| Color Depth: | 16-Bit | Color Temperature: | 2000K~10000K |
| Contrast Ratio: | 4000:1 | Operating Temperature: | -10°C-45°C |
| Pixel Density: | 27777 Dot/㎡ | Power Consumption: | 525W/㎡ |
| Power Supply: | 110V-220V | Refresh Rate: | 3840-7680HZ |
| Resolution: | 160x160 | Viewing Angle: | 140° |
| Waterproof Rating: | IP65 | Cabinet Size: | 960x960mm |
| Module Size: | 192x192mm | ||
| Highlight: | IP65 Waterproof LED Video Wall,4500-5500cd/㎡ Brightness Outdoor LED Display Screen,960x960mm Cabinet Size Digital Billboard |
||
Product Description
HD SMD LED Video Wall - Outdoor Fixed P6 Display
High-definition SMD LED video wall designed for outdoor fixed installations. This P6 LED display features a 960×960mm cabinet size and delivers exceptional visual performance for large-scale digital advertising and information displays.
Technical Specifications
| Product Type | LED Display Screen |
| Model Number | Outdoor P6 |
| Pixel Pitch | 6mm |
| Pixel Density | 27,777 dots/㎡ |
| Resolution per Cabinet | 160×160 |
| Cabinet Size | 960×960mm |
| Module Size | 192×192mm |
| Brightness | 4500-5500 cd/㎡ |
| Color Temperature | 2000K~10000K |
| Viewing Angle | 140° |
| Contrast Ratio | 4000:1 |
| Refresh Rate | 3840-7680Hz |
| Color Depth | 16-Bit |
| Pixel Configuration | 1R1G1B |
| Scan Rate | 1/8S |
| Power Consumption | 525W/㎡ |
| Power Supply | 110V-220V |
| Operating Temperature | -10°C to 45°C |
| Waterproof Rating | IP65 |
| Life Span | 100,000 Hours |
| Warranty | 2 Years |
| Cabinet Material | Waterproof Iron Cabinet |
| Control System | NOVA Star |
| IC Driver | Chipone ICN2153 |
| Service Access | Front/Rear Service |
| Certifications | CE, FCC |
Key Features
- High brightness (4500-5500 cd/㎡) for excellent sunlight readability
- IP65 waterproof rating for reliable outdoor operation
- Remote device management with cloud-based RDM platform
- Real-time status monitoring and remote power control
- Compatible with third-party content management systems
- Multiple mounting options including floor stand and custom mounts
- Wide 140° viewing angle for optimal visibility
- High refresh rate (3840-7680Hz) for smooth video playback
Applications

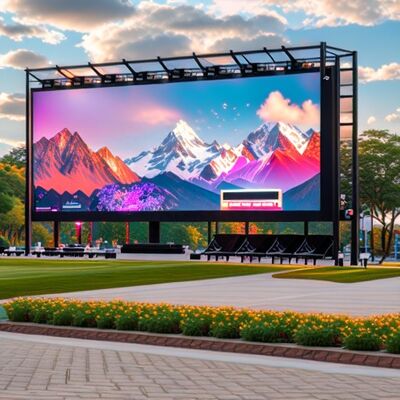

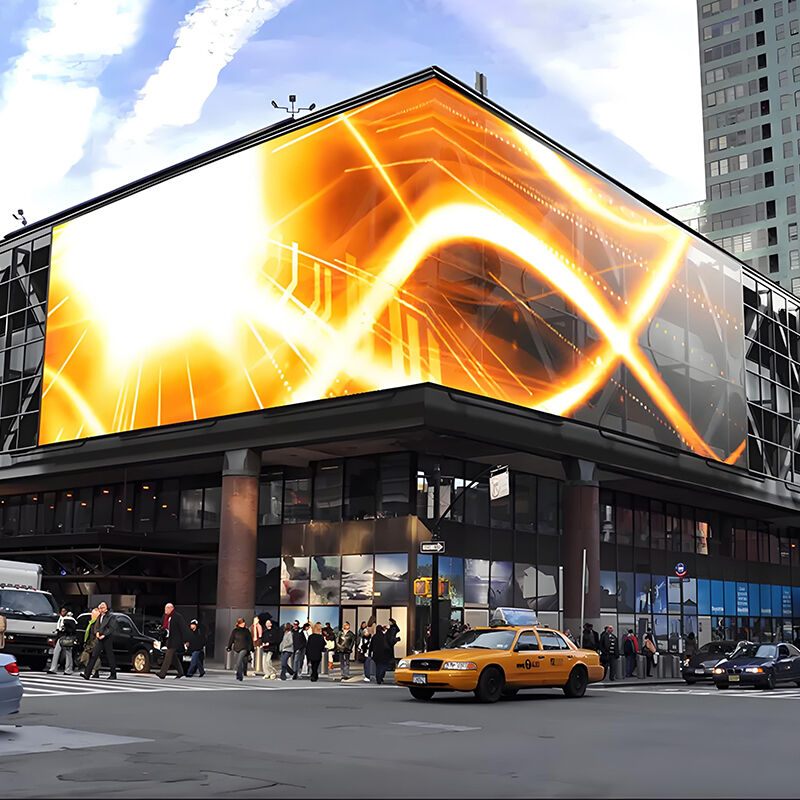

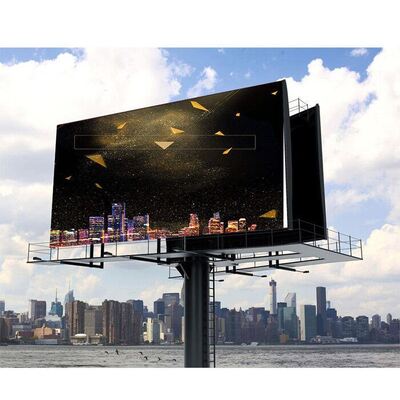

Ideal for outdoor advertising, commercial displays, retail stores, shopping malls, airports, parks, streets, stages, and various fixed installation environments requiring high-visibility digital signage.
Manufacturer Information
Brand: LEDKING
Place of Origin: Guangdong, China
Company Established: 2021
Export Markets: North America, South America, Eastern Europe, Africa, Western Europe, Eastern Asia
Place of Origin: Guangdong, China
Company Established: 2021
Export Markets: North America, South America, Eastern Europe, Africa, Western Europe, Eastern Asia
