IP65 Waterproof Outdoor LED Display Screen with 4500-5500 cd/m² Brightness and 3840-7680Hz Refresh Rate LED Video Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING |
| Model Number: | Outdoor P4 P5 P6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $538-555 |
|
Detail Information |
|||
| Brightness: | 4500-5500 Cd/m² | Color Depth: | 16-Bit |
|---|---|---|---|
| Color Temperature: | 2000K~10000K | Contrast Ratio: | 4000:1 |
| Operating Temperature: | -10C°~45C° | Resolution: | 160 Dot*160 Dot |
| Waterproof Rating: | IP65 | Viewing Angle: | 140° |
| Power Consumption: | 675W/m², 488W/m², 525W/m² | Refresh Rate: | 3840-7680HZ |
| Power Supply: | 110V-220V | Pixel Density: | 62500 / 40000 / 27778 Dot/m² |
| Cabinet Size: | 960*960mm | Life Span: | 100000Hours |
| Scan Rate: | 1/10S 1/8S | ||
| Highlight: | IP65 Waterproof LED Video Wall,4500-5500 cd/m² Brightness Outdoor LED Display Screen,3840-7680Hz Refresh Rate Digital Billboard |
||
Product Description

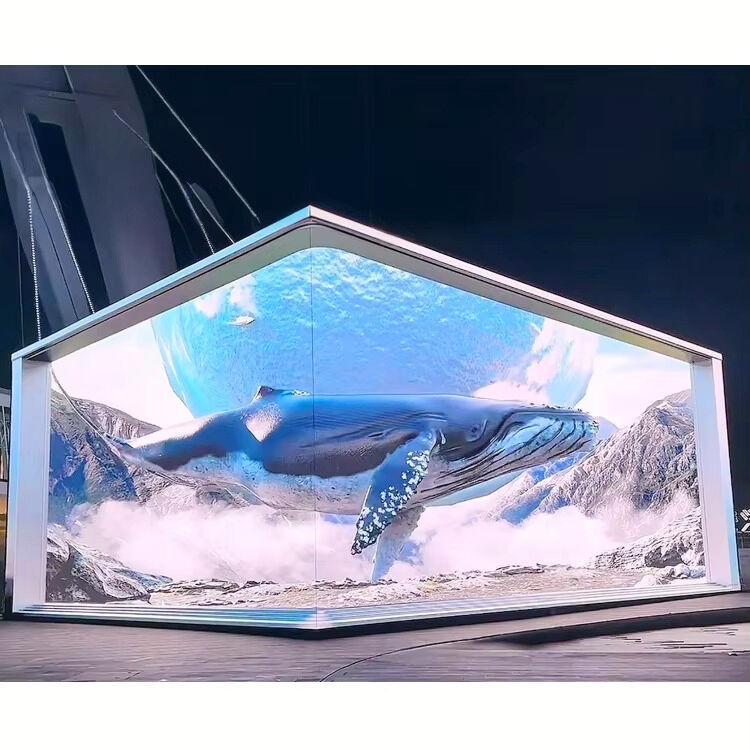

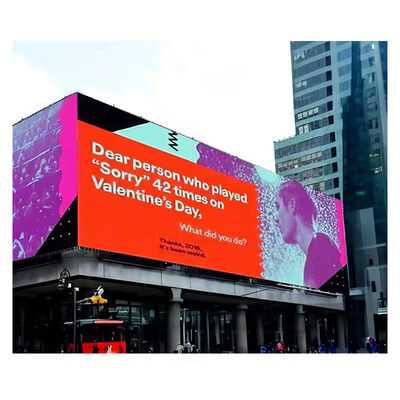

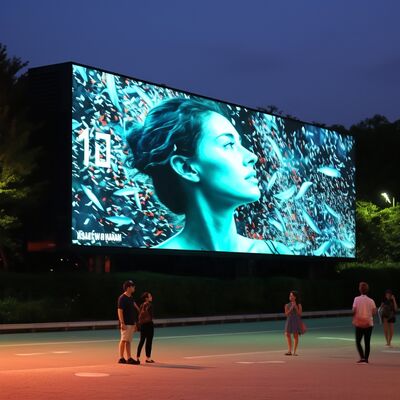

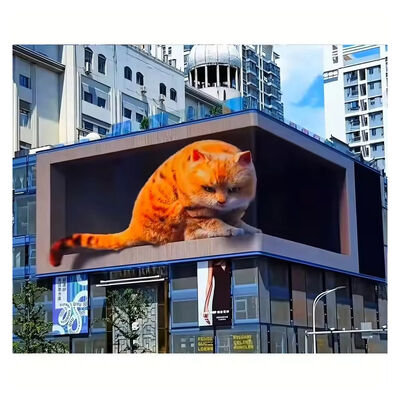

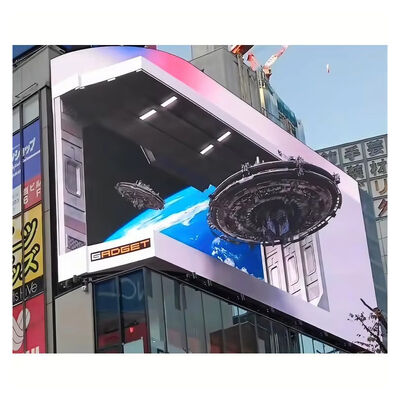

Outdoor LED Video Wall Display
Product Overview
Factory waterproof IP65 high brightness advertising outdoor LED video wall with P4, P5, and P6mm pixel pitches. Features 3D advertising capability and exterior display screen technology designed for optimal outdoor performance.
Technical Specifications
| Warranty | 2 years |
| Type | LED Display |
| Application | Outdoor |
| Pixel Pitches | 4mm, 5mm, 6mm |
| Brightness | 4500-5500 cd/m² |
| Color Temperature | 2000K~10000K |
| Operating Temperature | -10°C to 45°C |
| Resolution | 160 dots × 160 dots |
| Waterproof Rating | IP65 |
| Viewing Angle | 140° |
| Contrast Ratio | 4000:1 |
| Power Consumption | 675W/m², 488W/m², 525W/m² |
| Color Depth | 16-Bit |
| Refresh Rate | 3840-7680Hz |
| Power Supply | 110V-220V |
| Control System | NOVA Star |
| Cabinet Material | Waterproof Iron |
| Cabinet Size | 960×960mm |
| Life Span | 100,000 Hours |
| Certifications | CE, FCC |
Key Features
- IP65 waterproof rating for outdoor durability
- High brightness (4500-5500 cd/m²) for sunlight readability
- Multiple pixel pitch options (P4, P5, P6)
- Third-party CMS compatible
- Remote content management and real-time monitoring
- Cloud-based remote device management platform
- Wide 140° viewing angle
- High refresh rate (3840-7680Hz)
- Multiple mounting options available
Applications
Ideal for hotels, outdoor advertising, airports, shopping malls, retail stores, restaurants, highways, streets, beaches, exhibition halls, and wayfinding systems.
Manufacturer Profile
Shenzhen LED King Technology Co., Ltd. is founded by a professional team with extensive experience in LED display technology. Contact our service team for detailed consultation.
Most models feature Kinglight technology and 3840Hz refresh rate. For custom pixel pitch requirements and technical details, please contact us for personalized solutions.
Frequently Asked Questions
What control system is used and how does it work?
We use Nova Taurus Series asynchronous control system that supports cluster play and management. Compatible with APP/Phone/WIFI/iPad/Laptop/PC/Cloud control for easy and convenient operation.
Can I order samples for testing?
Yes, we welcome sample orders to test and verify quality. Mixed samples are acceptable.
Is custom logo printing available?
Yes. Please inform us formally before production and confirm the design based on our sample.
What services do you provide?
- One-to-one sales engineer responsibility system
- Project analysis and optimal solution provision
- Order tracking with detailed progress updates
- Installation and usage guidance
- Comprehensive after-sales service support
What is your delivery time?
Generally 7-15 days after receiving deposit. Specific timing depends on order items and quantity.
What is your warranty policy?
2-year warranty covering structure design, installation problems, system issues, and usage guidance. Our professional after-sales team provides comprehensive support.
