P4 P5 P6 P8 P10 Outdoor LED Display Screen with IP65 Waterproof 4500-7000cd/m² Brightness and 3840-7680Hz Refresh Rate
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING |
| Model Number: | Outdoor P4 P5 P6 P8 P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | CN¥2,301.37-2,917.81 |
|
Detail Information |
|||
| Brightness: | 4500-7000cd/m² | Color Depth: | 16-Bit |
|---|---|---|---|
| Color Temperature: | 2000K~10000K | Contrast Ratio: | 4000:1 |
| Operating Temperature: | -10-45C° | Resolution: | 240*240, 192*192, 160*160, 120*120, 96*96 |
| Waterproof Rating: | IP65 | Viewing Angle: | 140/120 |
| Power Consumption: | 675W/m², 488W/m², 525W/m², 650W/m² | Refresh Rate: | 3840-7680HZ |
| Pixel Density: | 62500/40000/27777/15625/10000 Dot/m² | Module Size: | 320x160mm |
| Cabinet Size: | 960x960mm | LED Specification: | SMD1921 / SMD3535 |
| Life Span: | 100000Hours | ||
| Highlight: | IP65 Waterproof LED Video Wall,4500-7000cd/m² Brightness Digital Billboard,3840-7680Hz Refresh Rate Outdoor LED Display Screen |
||
Product Description
Outdoor Full Color High Brightness Fixed Iron Cabinet LED Display
Professional P4, P5, P6, P8, and P10 pixel pitch outdoor LED displays with IP65 waterproof rating, designed for high-visibility advertising and information display in various outdoor environments.
Technical Specifications
| Pixel Pitches Available | 4mm, 5mm, 6mm, 8mm, 10mm |
| Brightness | 4500-7000 cd/m² |
| Resolution Options | 240×240, 192×192, 160×160, 120×120, 96×96 |
| Pixel Density | 62,500/40,000/27,777/15,625/10,000 dots/m² |
| Refresh Rate | 3840-7680 Hz |
| Color Depth | 16-Bit |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 140°/120° |
| Waterproof Rating | IP65 |
| Operating Temperature | -10°C to +45°C |
| Power Consumption | 488-675 W/m² |
| Power Supply | AC 110V-220V |
| Module Size | 320×160 mm |
| Cabinet Size | 960×960 mm |
| LED Specification | SMD1921 / SMD3535 |
| Pixel Configuration | 1R1G1B |
| IC Driver | Chipone ICN2153 |
| Control System | Novastar System |
| Service Access | Back Service |
| Life Span | 100,000 Hours |
| Warranty | 2 Years |
| Certifications | CE, FCC |
Key Features
- High brightness for excellent sunlight readability
- IP65 waterproof rating for reliable outdoor operation
- Multiple pixel pitch options for optimal viewing distance
- Third-party CMS compatible for flexible content management
- Remote device management with real-time monitoring
- Wall mount installation for versatile placement
- Robust iron cabinet construction for durability
Applications

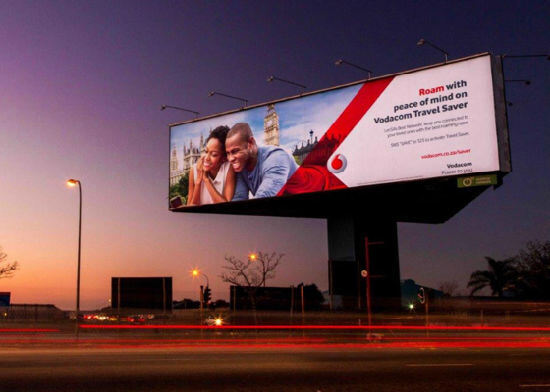

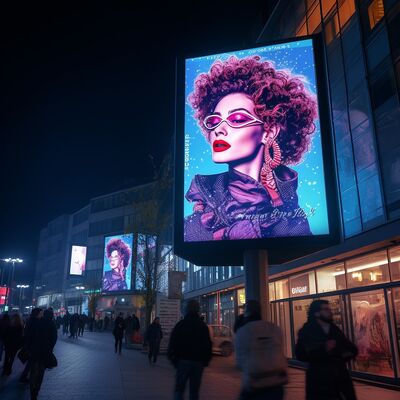

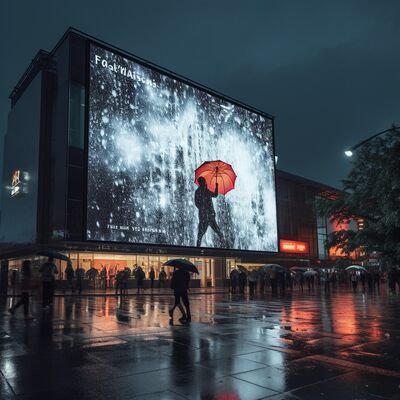

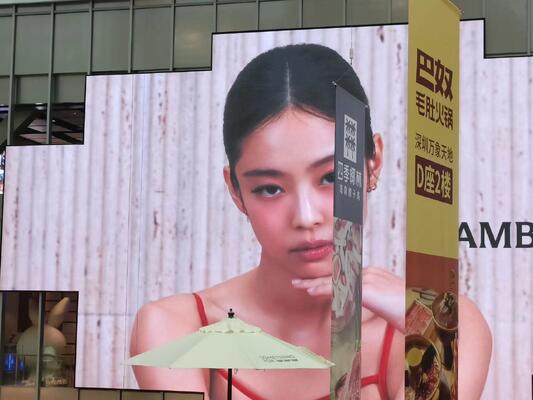

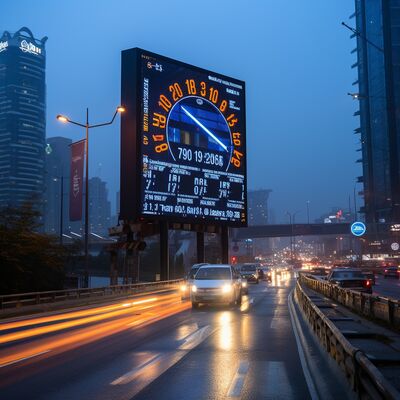

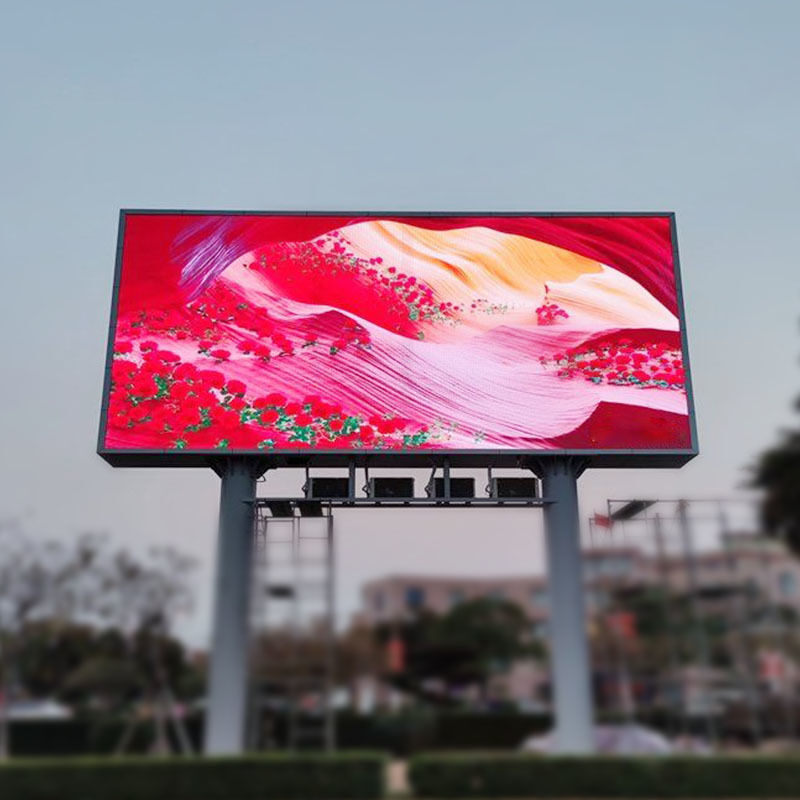

Ideal for outdoor advertising, exhibitions, churches, parks, beaches, gardens, stages, city centers, retail stores, shopping malls, and various public events.
Remote Management Capabilities
- Remote content management and scheduling
- Real-time status monitoring and diagnostics
- Remote power control and management
- Cloud-based remote device management platform
Professional Support
Shenzhen LED King Technology Co., Ltd. provides comprehensive one-stop LED screen solutions with professional R&D and 24/7 after-sales support teams.
Frequently Asked Questions
What control system is used and how does it work?
We use Nova Taurus Series asynchronous control system that supports cluster play and management. Compatible with APP/Phone/WIFI/iPad/Laptop/PC/Cloud control for easy and convenient operation.
Can I order samples before placing a bulk order?
Yes, we welcome sample orders to test and verify quality. Mixed samples are acceptable for evaluation.
Is custom logo printing available?
Yes, we can print your logo on products. Please inform us before production and confirm the design based on our sample.
What is your delivery time?
Generally 7-15 days after receiving your deposit. Specific delivery time depends on the items and quantity of your order.
What is your warranty policy?
2-year comprehensive warranty. Our professional after-sales team provides support for structural design, installation, system operation, and usage guidance.
Most models feature Kinglight LEDs and 3840Hz refresh rate. For custom pixel pitch requirements and technical details, please contact our professional team for personalized solutions.
