Outdoor LED Display Screen with IP65 Waterproof 5000-7000cd/m² Brightness and 100000 Hours Life Span for Digital Billboard
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING |
| Model Number: | Outdoor P6 P8 P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $336-365 |
|
Detail Information |
|||
| Pixel Pitch: | 6mm, 8mm, 10mm | Brightness: | 5000-7000cd/m² |
|---|---|---|---|
| Color Depth: | 16-Bit | Color Temperature: | 2000K~10000K |
| Contrast Ratio: | 4000:1 | Operating Temperature: | -10C°~45C° |
| Pixel Density: | 27778/15625/10000 Dot/m² | Power Consumption: | 650W/m² |
| Power Supply: | 110V-220V | Refresh Rate: | 3840-7680HZ |
| Resolution: | 160x160, 120x120, 96x96 Dot | Viewing Angle: | 140° |
| Waterproof Rating: | IP65 | Cabinet Size: | 960x960mm |
| Life Span: | 100000Hours | ||
| Highlight: | IP65 Waterproof LED Video Wall,5000-7000cd/m² Brightness Digital Billboard,100000 Hours Life Span Outdoor LED Display Screen |
||
Product Description
Outdoor P6 P8 P10 LED Display Screen

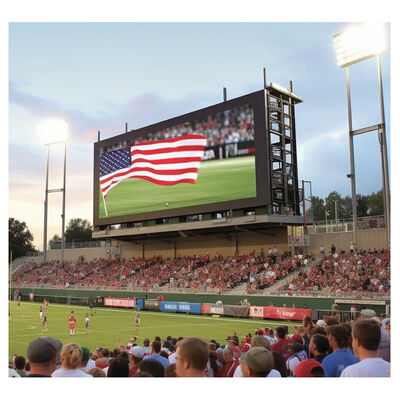

High-performance outdoor LED display screens designed for football stadiums, sports venues, and large-scale digital advertising applications. These robust displays deliver exceptional visibility and reliability in various outdoor environments.
Technical Specifications
| Specification | Value |
|---|---|
| Warranty | 2 years |
| Type | LED Display |
| Application | Outdoor |
| Pixel Pitch | 6mm, 8mm, 10mm |
| Pixel Density | 27,778 / 15,625 / 10,000 dot/m² |
| Brightness | 5,000-7,000 cd/m² |
| Color Temperature | 2,000K~10,000K |
| Operating Temperature | -10°C to 45°C |
| Resolution | 160×160, 120×120, 96×96 dots |
| Waterproof Rating | IP65 |
| Viewing Angle | 140° |
| Contrast Ratio | 4000:1 |
| Power Consumption | 650W/m² |
| Color Depth | 16-Bit |
| Refresh Rate | 3,840-7,680 Hz |
| Mounting Options | Wall Mount, Custom Mount |
| Power Supply | 110V-220V |
| Control System | NOVA Star |
| Cabinet Material | Waterproof Iron |
| Cabinet Size | 960×960mm |
| Life Span | 100,000 Hours |
| LED Specification | SMD 3535 |
| Scan Rate | 1/8S, 1/6S, 1/2S |
| Pixel Configuration | 1R1G1B |
| Certifications | CE, FCC |
Key Features
- Sunlight readable with high brightness (5,000-7,000 cd/m²)
- IP65 waterproof rating for outdoor durability
- Third-party CMS compatible for flexible content management
- Remote device management with real-time status monitoring
- Cloud-based remote power control and content management
- Wide operating temperature range (-10°C to 45°C)
- High refresh rate (3,840-7,680 Hz) for smooth video playback
- Multiple mounting options including wall and custom mounts
Applications
Ideal for hotels, outdoor venues, airports, shops, restaurants, highways, advertising displays, streets, beaches, shopping malls, welcome displays, exhibition halls, wayfinding systems, and self-service businesses.
Manufacturer Profile
Shenzhen LED King Technology Co., Ltd. is founded by a professional team with extensive experience in LED display technology. Our dedicated service team provides comprehensive support for all your LED display needs.
Most models feature Kinglight technology and 3840Hz refresh rate. For custom pixel pitch requirements and technical details, please contact our technical team for personalized solutions.
Frequently Asked Questions
What control system do you use and how does it work?
We use Nova Taurus Series asynchronous control system that supports cluster play and management. The system is compatible with APP/Phone/WIFI/iPad/Laptop/PC/Cloud control, making it easy and convenient to operate.
Can I order a sample LED screen?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable for evaluation purposes.
Is it possible to print my logo on the product?
Yes, we can customize products with your logo. Please inform us formally before production and confirm the design based on our sample first.
What services do you provide?
- One-to-one sales engineer responsibility system
- Project analysis and optimal solution provision
- Order tracking with detailed progress updates
- Installation and usage guidance
- Comprehensive after-sales service and support
What is your delivery time?
Generally, delivery takes 7-15 days after receiving your deposit. Specific delivery times depend on the items and quantity of your order.
What is your warranty policy?
We provide a 2-year warranty covering structure design, installation problems, system issues, and usage guidance. Our professional after-sales team solves any questions after order placement, and your exclusive sales engineer helps overcome any problems.
