Outdoor LED Display Screen IP65 Waterproof with 4000-5000 cd/m² Brightness and 100000 Hours Life Span
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING |
| Model Number: | Outdoor P6 P8 P10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 53,583-55,452円 |
|
Detail Information |
|||
| Pixel Pitch: | 6MM 8MM 10MM | Brightness: | 4000-5000 Cd/m² |
|---|---|---|---|
| Color Depth: | 16-Bit | Color Temperature: | 2000K~10000K |
| Contrast Ratio: | 4000:1 | Operating Temperature: | -10-45C° |
| Pixel Density: | 27778 Dot/㎡ 15625 Dot/㎡ 10000 Dot/㎡ | Power Consumption: | 976W/m² |
| Power Supply: | 110V-220V, AC 110V/22OV-5V60A | Refresh Rate: | 3840-7680HZ |
| Resolution: | 160×160, 120×120, 96×96 | Viewing Angle: | 140/120 |
| Waterproof Rating: | IP65 | Module Size: | 320x160mm |
| Cabinet Size: | 960x960mm | ||
| Highlight: | IP65 Waterproof LED Video Wall,4000-5000 cd/m² Brightness Stadium LED Screen,100000 Hours Life Span Outdoor LED Display Screen |
||
Product Description
Outdoor Event LED Display Screen
High-performance waterproof LED video wall designed for outdoor events, sports stadiums, and various outdoor applications with IP65 protection rating.
Product Overview
Technical Specifications
| Product Type | LED Display Screen |
| Model Numbers | Outdoor P6, P8, P10 |
| Pixel Pitch Options | 6MM, 8MM, 10MM |
| Pixel Density | 27778 dot/㎡ (P6), 15625 dot/㎡ (P8), 10000 dot/㎡ (P10) |
| Brightness | 4000-5000 cd/m² |
| Refresh Rate | 3840-7680HZ |
| Color Depth | 16-Bit |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 140/120 degrees |
| Resolution | 160×160, 120×120, 96×96 |
| Waterproof Rating | IP65 |
| Power Consumption | 976W/m² |
| Power Supply | AC 110V/220V-5V60A |
| Operating Temperature | -10°C to 45°C |
| Color Temperature | 2000K~10000K |
| Module Size | 320x160mm |
| Cabinet Size | 960x960mm |
| LED Specification | SMD3535 |
| Pixel Configuration | 1R1G1B |
| IC Type | Chipone ICN2153 |
| Control System | Novastar System |
| Life Span | 100,000 Hours |
| Warranty | 2 Years |

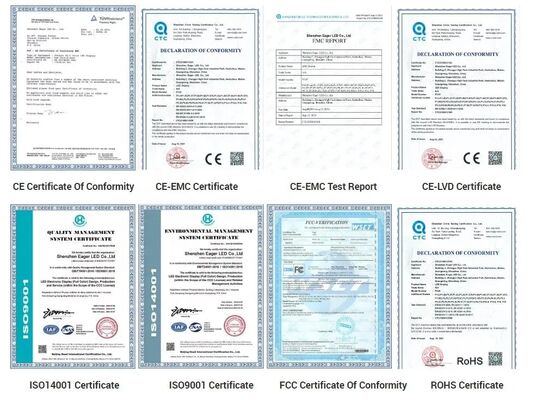

| Certifications | CE, FCC |
| Place of Origin | Guangdong, China |
Key Features
- High brightness (4000-5000 cd/m²) for excellent sunlight readability
- IP65 waterproof rating for reliable outdoor operation
- Multiple pixel pitch options (P6, P8, P10) for various viewing distances
- Advanced Novastar control system with remote management capabilities
- High refresh rate (3840-7680HZ) for smooth video playback
- Flexible mounting options including floor stand and custom mounts
- Third-party CMS compatible for easy integration
- Remote content management and real-time status monitoring
Applications

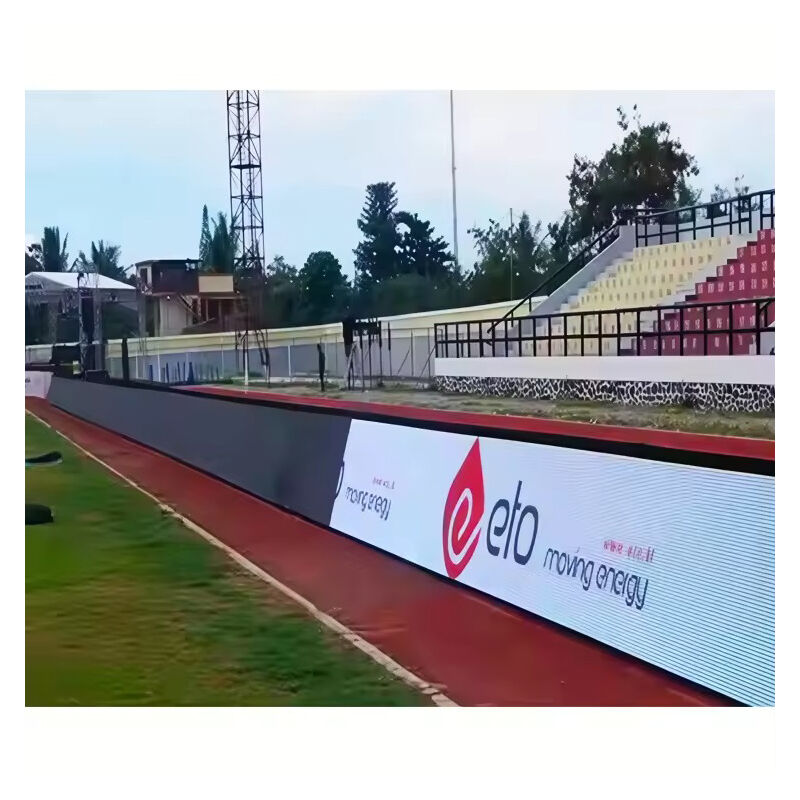

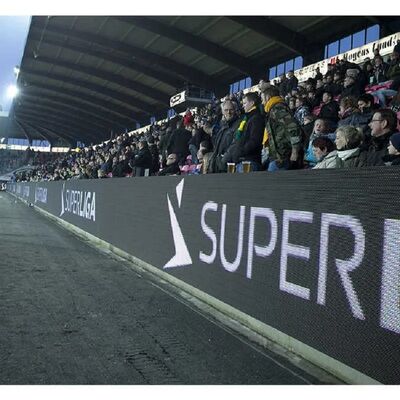

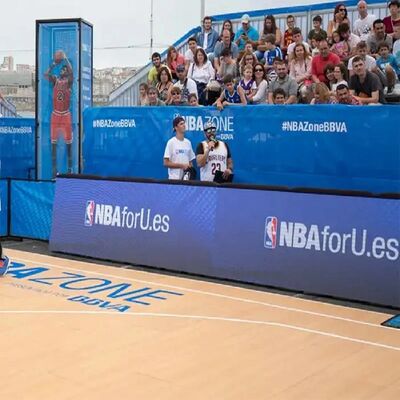

Outdoor advertising, sports stadiums, exhibitions, churches, parks, beaches, gardens, stages, city advertisements, and various events.
Manufacturer Profile
Shenzhen LED King Technology Co., Ltd. is a professional LED display manufacturer founded by an experienced team, providing comprehensive LED screen solutions with strong R&D and after-sales support.
Frequently Asked Questions
What control system is used and how does it work?
We use Nova Taurus Series asynchronous control system that supports cluster play and management. Compatible with APP/Phone/WIFI/iPad/Laptop/PC/Cloud control for easy and convenient operation.
Can I order samples before bulk production?
Yes, we welcome sample orders to test and verify quality. Mixed samples are acceptable for evaluation.
Is custom logo printing available?
Yes, we can print your logo on the product. Please inform us before production and confirm the design based on our sample.
What is your delivery time?
Generally 7-15 days after receiving your deposit. Specific delivery time depends on the items and quantity of your order.
What is your warranty policy?
2-year warranty covering structure design, installation problems, system issues, and usage guidance. Our professional after-sales team provides comprehensive support.
Quality Assurance
- Pre-production samples provided before mass production
- Final inspection conducted before shipment
- Professional R&D team and after-sales maintenance team
- Fast response and delivery services
Note: Most units feature Kinglight LEDs and 3840Hz refresh rate. For different pixel pitch requirements and technical details, please contact our service team for customized solutions.
