LEDKING P3.076MM Outdoor LED Display Screen with IP65 Waterproof and 4500-5500cd Brightness for Advertising
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING |
| Model Number: | Outdoor P3.076 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 103,738-104,050円 |
|
Detail Information |
|||
| Pixel Pitch: | 3.076MM | Brightness: | 4500-5500cd |
|---|---|---|---|
| Color Depth: | 16-Bit | Color Temperature: | 2000K~10000K |
| Contrast Ratio: | 4000:1 | Operating Temperature: | -10°C-45°C |
| Pixel Density: | 105688 Dot/㎡ | Power Consumption: | 550W/㎡ |
| Power Supply: | 110V-220V | Refresh Rate: | 3840-7680HZ |
| Resolution: | 312x312 | Viewing Angle: | 140° |
| Waterproof Rating: | IP65 | Module Size: | 320x160mm |
| Cabinet Size: | 960x960mm | ||
| Highlight: | P3.076MM LED Video Wall,IP65 Waterproof LED Screen Panel,4500-5500cd Brightness Outdoor LED Display Screen |
||
Product Description
LEDKING HD Waterproof P3.076 LED Display
Professional outdoor LED video wall panel designed for fixed installations, stage backgrounds, and advertising displays. Featuring high brightness and waterproof construction for reliable performance in various environments.
Product Overview
Technical Specifications
| Model Number | Outdoor P3.076 |
| Pixel Pitch | 3.076mm |
| Pixel Density | 105,688 dots/㎡ |
| Resolution per Module | 312×312 |
| Brightness | 4500-5500 cd/㎡ |
| Color Temperature | 2000K~10000K |
| Viewing Angle | 140° |
| Contrast Ratio | 4000:1 |
| Refresh Rate | 3840-7680Hz |
| Color Depth | 16-Bit |
| Pixel Configuration | 1R1G1B |
| Scan Rate | 1/16S |
| Power Consumption | 550W/㎡ |
| Power Supply | 110V-220V |
| Operating Temperature | -10°C to 45°C |
| Waterproof Rating | IP65 |
| Life Span | 100,000 Hours |

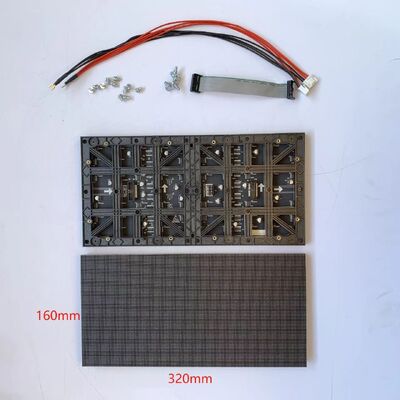

| Module Size | 320×160mm |
| Cabinet Size | 960×960mm |
| Cabinet Material | Waterproof Iron Cabinet |
| IC | Chipone ICN2153 |
| Control System | NOVA Star |
| Service Access | Front/Rear Service |
| Mounting Options | Floor stand, Custom Mount |
| Sunlight Readable | Yes |
| Warranty | 2 Years |
| Certifications | CE, FCC |
Key Features
- High Definition 3.076mm pixel pitch for crisp image quality
- IP65 waterproof rating for reliable outdoor operation
- High brightness (4500-5500cd) for sunlight readability
- Third-party CMS compatible with remote management capabilities
- Cloud-based remote device management platform
- Real-time status monitoring and remote power control
- Wide 140° viewing angle for optimal visibility
- Low power consumption at 550W per square meter
- Long lifespan of 100,000 hours
Applications

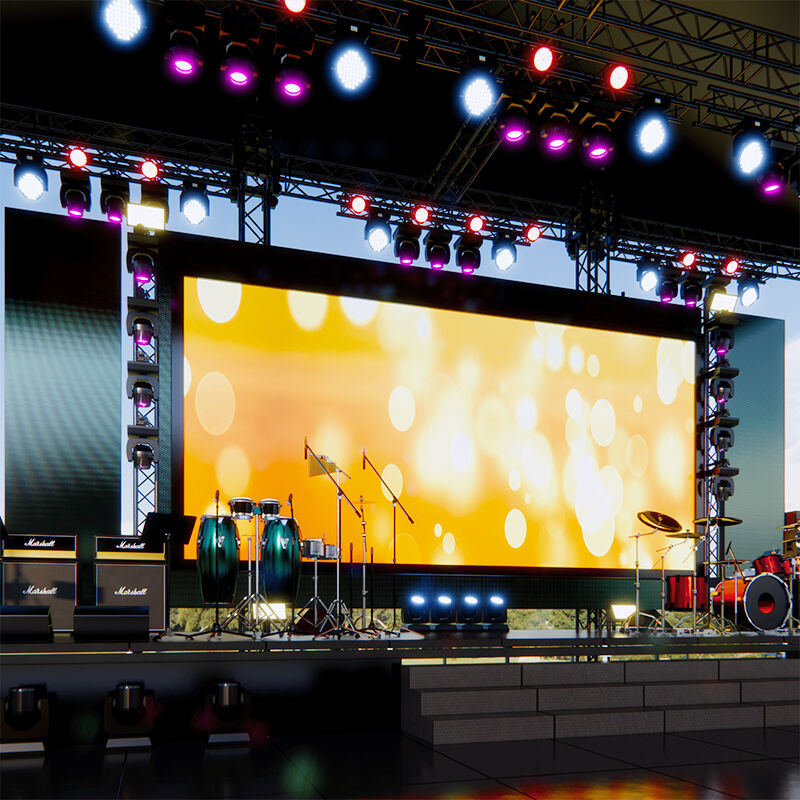

Ideal for outdoor advertising, airports, retail stores, shopping malls, commercial marketing, parks, streets, stage backgrounds, and fixed installations for international commercial use.
Company Profile
Frequently Asked Questions
What control system is used and how does it work?
We use Nova Taurus Series asynchronous control system that supports cluster play and management. Compatible with APP/Phone/WIFI/iPad/Laptop/PC/Cloud control for easy and convenient operation.
Can I place a sample order for the LED screen?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Is it possible to print my logo on the product?
Yes. Please inform us formally before production and confirm the design first based on our sample.
What services do you provide?
- One-to-one sales engineer responsibility system
- Project analysis and optimal solution provision
- Order tracking with detailed progress updates
- Installation and usage guidance
- Comprehensive after-sales service support
What is your delivery time?
Generally 7-15 days after receiving your deposit. Specific delivery time depends on the items and quantity of your order.
What is your warranty policy?
2-year warranty covering structure design, installation problems, system issues, and usage guidance. Our professional after-sales team and your exclusive sales engineer will help resolve any questions after you place an order.
