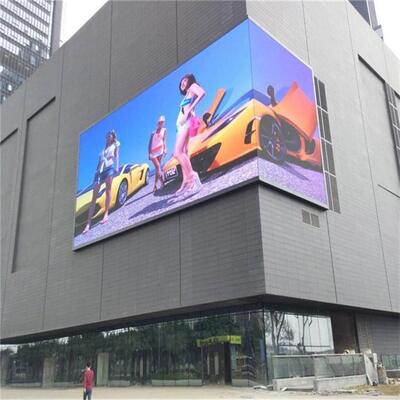

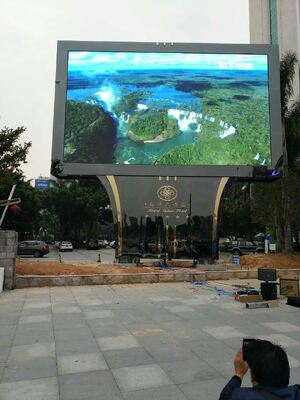

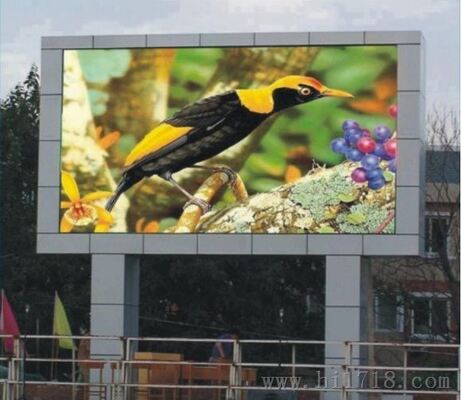

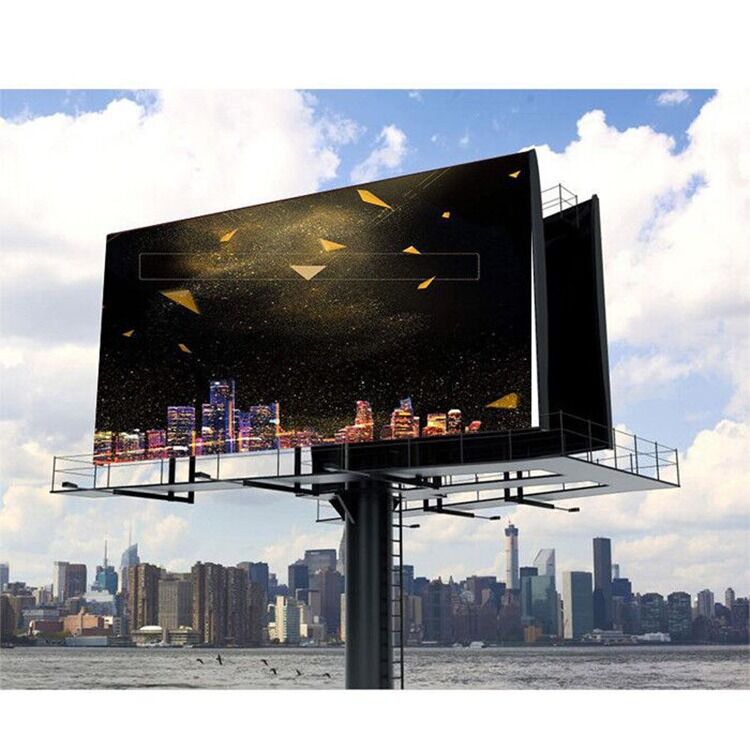

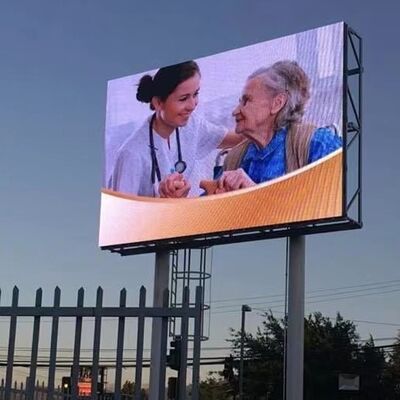

Outdoor LED Display Screen with IP65 Waterproof 1920Hz-3840Hz Refresh Rate and 100000 Hours Life Span
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING or OEM & ODM |
| Model Number: | FO-P8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $317-337 |
|
Detail Information |
|||
| Pixel Pitch: | 8mm | Pixel Density: | 15625 Dot/m2 |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B | Max Power Consumption: | 28W |
| Panel Weight: | 0.3KG | Cabinet Size: | 768mm*1280mm*140mm |
| Cabinet Resolution: | 96dot * 160 Dot | Quantity Of Panel: | 30pcs |
| Hub Connecting: | HUB75-E | Screen Power Supply: | AC110V/220V - 5V40A |
| Max Power Capacity: | 1020W/m2 | Refresh Frequency: | 1920-3840 HZ/S |
| Brightness: | 5000mcd/m2 | Best Viewing Distance: | 8-50M |
| IP Protective Index: | IP65 | ||
| Highlight: | IP65 Waterproof Outdoor LED Display Screen,1920Hz-3840Hz Refresh Rate LED Video Wall,100000 Hours Life Span Outdoor LED Screen |
||
Product Description
Outdoor LED Display Panel - P8 Model
Product Specifications
Module Specifications
| Specification | Outdoor P6.67 | Outdoor P8 | Outdoor P8 |
|---|---|---|---|
| Panel Dimension | 320mm(W) × 160mm(H) | 256mm(W) × 128mm(H) | 320mm(W) × 160mm(H) |
| Pixel Pitch | 6.67mm | 8mm | 8mm |
| Pixel Density | 22477 dot/m² | 15625 dot/m² | 15625 dot/m² |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Specification | SMD3535 | SMD3535 | SMD3535 |
| Pixel Resolution | 48 dot × 48 dot | 32 dot × 16 dot | 40 dot × 20 dot |
| Max Power Consumption | 43W | 28W | 40W |
| Panel Weight | 0.45KG | 0.3KG | 0.5KG |
Cabinet Specifications
| Specification | Outdoor P6.67 | Outdoor P8 | Outdoor P8 |
|---|---|---|---|
| Cabinet Size | 960mm×960mm×90mm | 768mm×1280mm×140mm | 960mm×960mm×90mm |
| Cabinet Resolution | 144dot×144dot | 96dot×160dot | 120dot×120dot |
| Quantity of Panels | 18pcs | 30pcs | 18pcs |
| Hub Connecting | HUB75-E | HUB75-E | HUB75-E |
| Cabinet Material | Die-casting aluminum | Simple iron / Waterproof iron | Die-casting aluminum |
| Maintenance Method | Front/Back service | Front/Back service | Front/Back service |
| Best Viewing Angle | 140°/120° | 140°/120° | 140°/120° |
| Screen Power Supply | AC110V/220V - 5V60A | AC110V/220V - 5V40A | AC110V/220V - 5V60A |
| Max Power Capacity | 1350W/m² | 1020W/m² | 976W/m² |
| Average Power | 675W/m² | 510W/m² | 488W/m² |
Technical Specifications
| Specification | Outdoor P6.67 | Outdoor P8 | Outdoor P8 |
|---|---|---|---|
| Driving IC | ICN 2037 / 2153 | ICN 2037 / 2153 | ICN 2037 / 2153 |
| Scan Rate | 1/6S | 1/4S | 1/5S |
| Refresh Frequency | 1920-3840 Hz/s | 1920-3840 Hz/s | 1920-3840 Hz/s |
| Display Color | 4096×4096×4096 | 4096×4096×4096 | 4096×4096×4096 |
| Brightness | 4000-5000 cd/m² | 5000 mcd/m² | 4800 mcd/m² |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Control Distance | < 100M | < 100M | < 100M |
| Best Viewing Distance | 6-40M | 8-50M | 8-50M |
| Operating Temperature | -10°C to 45°C | -10°C to 45°C | -10°C to 45°C |
| Operating Humidity | 10-90% | 10-90% | 10-90% |
| IP Protective Index | IP65 | IP65 | IP65 |
Most models feature Kinglight components and 3840Hz refresh rate. For custom specifications, additional pixel pitch options, and detailed technical requirements, please contact our technical team.
