Outdoor LED Advertising Screen For Outdoor Digital Advertising Systems IP65 Waterproof Front Maintenance Screen P3.91 Concert Led Screens Commercial Led Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDKING |
| Certification: | CE FCC ISO |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $567/PC |
| Packaging Details: | Plywood case |
| Delivery Time: | 15days |
| Payment Terms: | T/T |
| Supply Ability: | 10pc 15days |
|
Detail Information |
|||
| Panel Dimension: | 250mm(W) * 250mm(H) | Pixel Density: | 65410 Dot/m² |
|---|---|---|---|
| LED Specification: | SMD1921 | Cabinet Size: | 1000mm * 1000mm |
| Material: | Waterproof Iron Cabinet | Driving IC: | ICN 2153 |
| Highlight: | Outdoor LED advertising screen IP65 waterproof,P3.91 concert LED display screen,Commercial LED display front maintenance |
||
Product Description
P3.91 Outdoor LED Advertising Screen

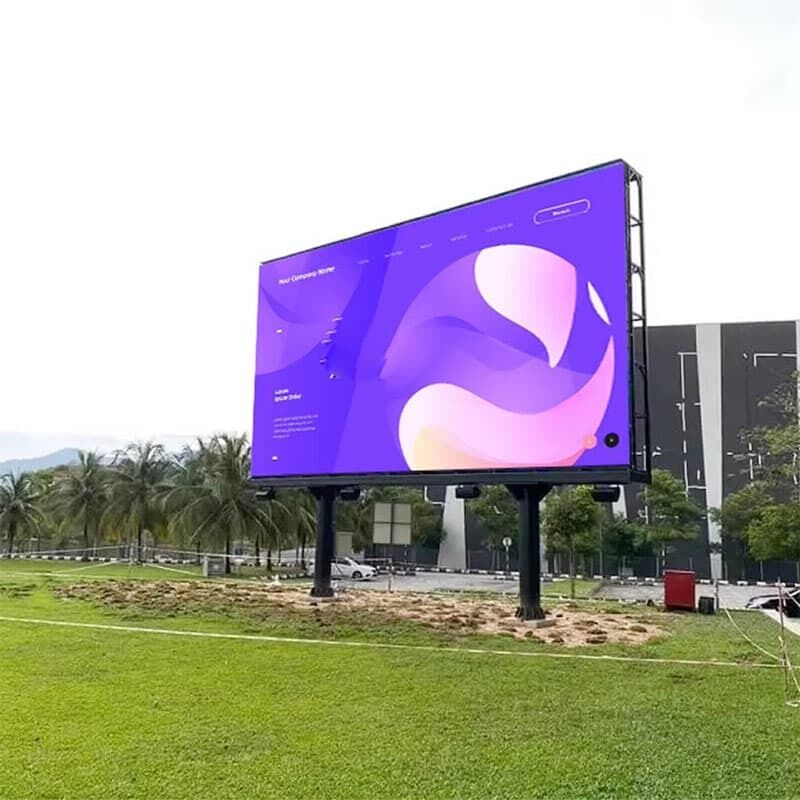

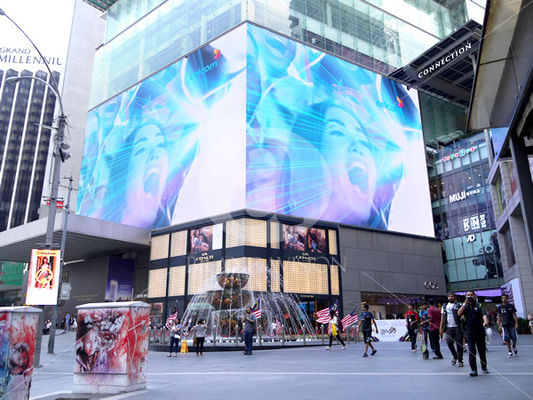

Professional outdoor LED display designed for building facade billboards with front maintenance access and waterproof iron cabinet construction. Ideal for stage applications and high-visibility advertising.
Key Features
- Front maintenance access for easy servicing
- IP65 waterproof rating for outdoor durability
- High brightness (4000-4500cd/m²) for clear visibility
- Wide viewing angle (170°/120°)
- Long lifespan of 100,000 hours
- Suitable for building facades and stage applications
Module Specifications
| Parameter | Value |
|---|---|
| Panel Dimension | 250mm(W) * 250mm(H) |
| Pixel Pitch | 3.91mm |
| Pixel Density | 65410 dot/m² |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1921 |
| Pixel Resolution | 64dot * 64dot |
| Max Power Consumption | 22.5W |
| Panel Weight | 0.6KG |
Cabinet Specifications
| Parameter | Value |
|---|---|
| Cabinet Size | 1000mm * 1000mm |
| Cabinet Resolution | 255dot * 255dot |
| Quantity of Panels | 16pcs |
| Hub Connecting | HUB75-E |
| Material | Waterproof Iron Cabinet |
| Maintenance Method | Front Service |
| Best Viewing Angle | 170°/120° |
| Screen Power Supply | AC110V/220V - 5V40A |
| Max Power Capacity | 1100 W/m² |
| Average Power Consumption | 450W/m² |
| Panel Weight | 50KG |
Technical Specifications
| Parameter | Value |
|---|---|
| Driving IC | ICN 2153 |
| Scan Rate | 1/S |
| Refresh Frequency | 3840 HZ/S |
| Brightness | 4000-4500cd/m² |
| Life Span | 100,000 Hours |
| Display Color | 4096 * 4096 * 4096 |
| Contrast Ratio | 4000:1 |
| Control Distance | <100M |
| Best Viewing Distance | 3-30M |
| Operating Temperature | -10°C ~ 45°C |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |
Product Images
