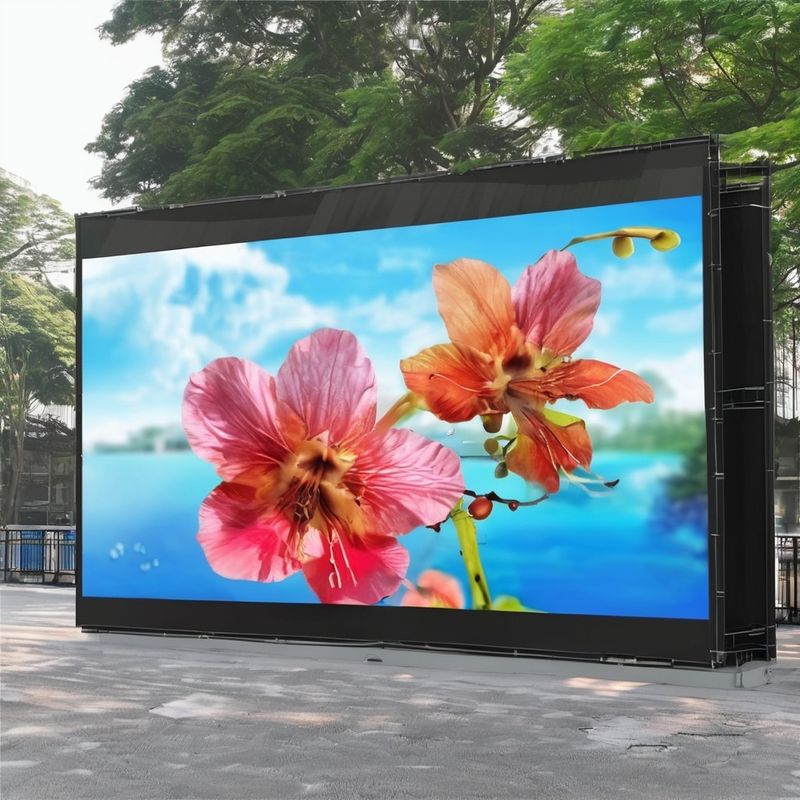

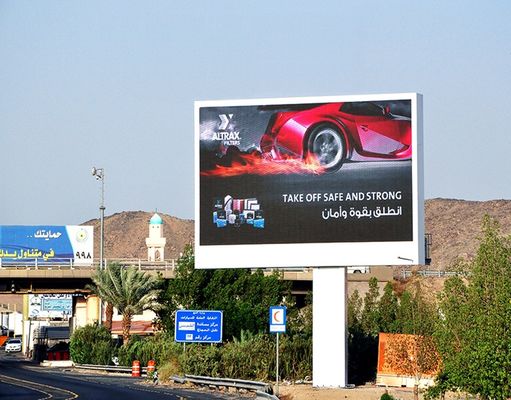

Large Outdoor P5 LED Display Screen For Digital Advertising Boards Suitable For Digital Billboard Projects Outdoor Advertising Led Display Screen led wall screen display outdoor
Product Details:
| Place of Origin: | China |
| Brand Name: | LEDKING |
| Certification: | CE FCC ISO |
| Model Number: | P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | $348 |
| Packaging Details: | plywood case |
| Delivery Time: | 15days |
| Payment Terms: | ,T/T |
| Supply Ability: | 10-100pc,15days |
|
Detail Information |
|||
| Material: | Waterproof Iron Cabinet | Cabinet Size: | 960mm*960mm |
|---|---|---|---|
| Panel Dimension: | 320mm(W) * 160mm(H) | Cabinet Resolution: | 192dot * 192dot |
| Driving IC: | ICN 2153 | Scan Rate: | 1/8S |
| Highlight: | P5 outdoor LED display screen,large digital advertising LED screen,outdoor billboard LED display screen |
||
Product Description
Large Outdoor P5 LED Display Screen For Digital Advertising Boards
Module Specifications
| Parameter | Value |
|---|---|
| Panel Dimension | 320mm(W) * 160mm(H) |
| Pixel pitch | 5mm |
| Pixel Density | 40000dot/m2 |
| Pixel configuration | 1R1G1B |
| LED specification | SMD1921 |
| Pixel resolution | 64dot * 32dot |
| Max power consumption | 40W |
| Panel weight | 0.5KG |
Cabinet Specifications
| Parameter | Value |
|---|---|
| Cabinet size | 960mm*960mm |
| Cabinet Resolution | 192dot * 192dot |
| Quantity of panel | 18pcs |
| Hub connecting | HUB75-E |
| Material | Waterproof Iron cabinet |
| Maintenance Method | Back service |
| Best viewing angle | 170/120 |
| Screen power supply | AC110V/220V - 5V60A |
| Max power capacity | 976 W/m2 |
| Average power consumption | 488W/m2 |
| Panel weight | 40KG |
Technical Signal Index
| Parameter | Value |
|---|---|
| Driving IC | ICN 2153 |
| Scan Rate | 1/8S |
| Refresh frequency | 3840 HZ/S |
| Brightness | 4500-5500cd/m2 |
| Life span | 100000Hours |
| Display color | 4096*4096*4096 |
| Contrast Ratio | 4000:1 |
| Control distance | <100M |
| Best viewing distance | 5-40M |
| Operating temperature | -10C°~45C° |
| Operating Humidity | 10-90 % |
| IP protective index | IP65 |
