Outdoor P2.604 LED Video Wall with IP65 Waterproof and 3840Hz Refresh Rate for High Brightness Display
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING |
| Model Number: | Outdoor P2.604 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $539-562 |
|
Detail Information |
|||
| Pixel Pitch: | P2.604 | Brightness: | 4500-5000cd/㎡ |
|---|---|---|---|
| Color Depth: | 16-Bit | Color Temperature: | 2000K~10000K |
| Contrast Ratio: | 4000:1 | Pixel Density: | 147474 Dot/㎡ |
| Power Consumption: | 390W/㎡ | Power Supply: | 110V, 220V |
| Refresh Rate: | 3840HZ | Resolution: | 192x384 |
| Viewing Angle: | 170° | Waterproof Rating: | IP65 |
| Module Size: | 250x250 Mm | Cabinet Weight: | 13KG |
| Life Span: | 100000hours | ||
| Highlight: | P2.604 LED Video Wall,IP65 Waterproof LED Video Wall,3840Hz Refresh Rate LED Video Wall |
||
Product Description

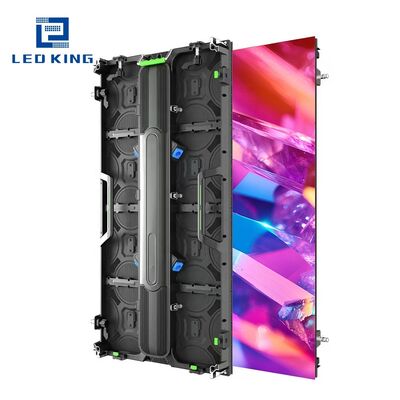

Outdoor P2.604 HD Curved SMD LED Video Wall
High-definition curved LED display panel designed for rental applications in churches, exhibitions, stages, and public backdrops. Features excellent brightness and wide viewing angles for outdoor visibility.
Technical Specifications
| Model Number | Outdoor P2.604 |
| Pixel Pitch | P2.604 |
| Pixel Density | 147,474 dots/㎡ |
| Resolution per Module | 192 x 384 |
| Brightness | 4500-5000 cd/㎡ |
| Viewing Angle | 170° |
| Contrast Ratio | 4000:1 |
| Refresh Rate | 3840 Hz |
| Color Depth | 16-Bit |
| Scan Rate | 1/24S |
| Power Consumption | 390W/㎡ |
| Power Supply | 110V, 220V |
| Waterproof Rating | IP65 |
| Operating Temperature | -10°C to 45°C |
| Module Size | 250 x 250 mm |
| Cabinet Weight | 13 kg |
| Material | Die-casting Aluminum Cabinet |
| Service Access | Front/Rear |
| Mounting Options | Ceiling Mount |
| Life Span | 100,000 hours |
| Warranty | 2 years |
| Control System | NOVA Star |
| IC Chip | Chipone ICN2153 |
| Pixel Configuration | 1R1G1B |
| Certifications | CE, FCC |
Key Features
- High-definition P2.604 pixel pitch for crisp image quality
- Curved design capability for immersive viewing experiences
- IP65 waterproof rating for reliable outdoor operation
- Sunlight readable with 4500-5000 cd/㎡ brightness
- Wide 170° viewing angle for maximum audience coverage
- Remote device management with cloud-based RDM platform
- Third-party CMS compatible for flexible content management
- Real-time status monitoring and remote power control
- Durable die-casting aluminum construction
- Front and rear service access for easy maintenance

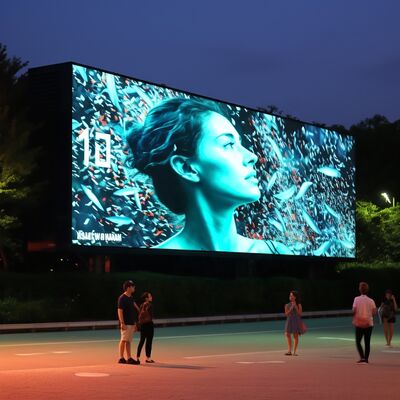

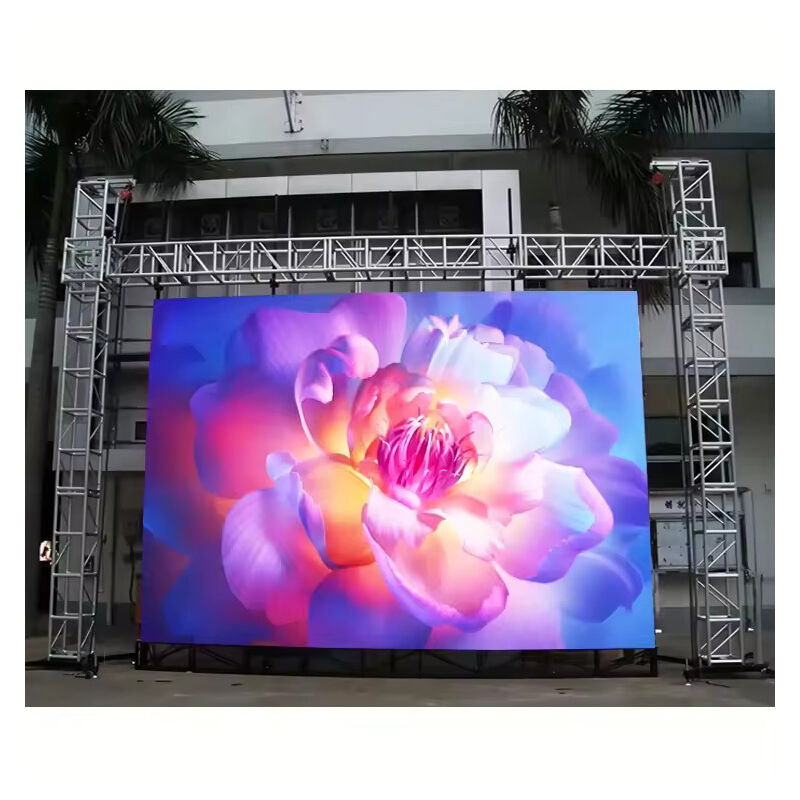

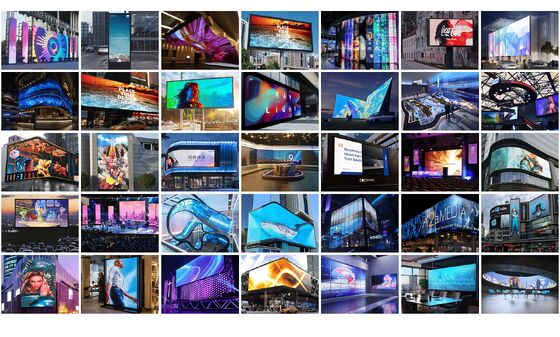

Applications
Shop windows, outdoor advertising, retail stores, schools, commercial spaces, taxis, rental services, marketing displays, bars, airports, subways, parks, streets, offices, stages, gyms, fixed installations, and urban environments.
Frequently Asked Questions
What control system is used and how does it work?
We use Nova Taurus Series asynchronous control system that supports cluster play and management. It's compatible with APP/Phone/WIFI/iPad/Laptop/PC/Cloud control, making operation easy and convenient.
Can I place a sample order for the LED screen?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Is it possible to print my logo on the product?
Yes. Please inform us formally before production and confirm the design first based on our sample.
What services do you provide?
- One-to-one sales engineer responsibility system
- Project analysis and optimal solution provision
- Order tracking with detailed progress updates
- Installation and usage guidance
- Comprehensive after-sales service and support
What is your delivery time?
Generally 7-15 days after receiving your deposit. Specific delivery time depends on the items and quantity of your order.
What is your warranty policy?
2-year warranty covering structure design, installation problems, system issues, and usage guidance. Our professional after-sales team will solve any questions after you place an order, and your exclusive sales engineer will help overcome any problems.
