Outdoor LED Display Screen with IP65 Waterproof 3840Hz Refresh Rate and 100,000 Hours Lifespan
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING |
| Model Number: | Outdoor P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 57,477-57,788円 |
|
Detail Information |
|||
| Pixel Pitch: | 5MM | Brightness: | 4500cd |
|---|---|---|---|
| Color Depth: | 16-Bit | Color Temperature: | 2000K~10000K |
| Contrast Ratio: | 4000:1 | Operating Temperature: | -10℃~45℃ |
| Pixel Density: | 40000dot/m2 | Power Consumption: | 488W/m2 |
| Refresh Rate: | 3840HZ | Resolution: | 192 X192 |
| Viewing Angle: | 170°/120° | Waterproof Rating: | IP65 |
| Cabinet Size: | 960mm X 960mm | LED Specification: | SMD 2020/3528 |
| Pixel Configuration: | 1R1G1B | ||
| Highlight: | IP65 Waterproof LED Video Wall,3840Hz Refresh Rate Digital Billboard,100,000 Hours Lifespan Outdoor LED Display Screen |
||
Product Description

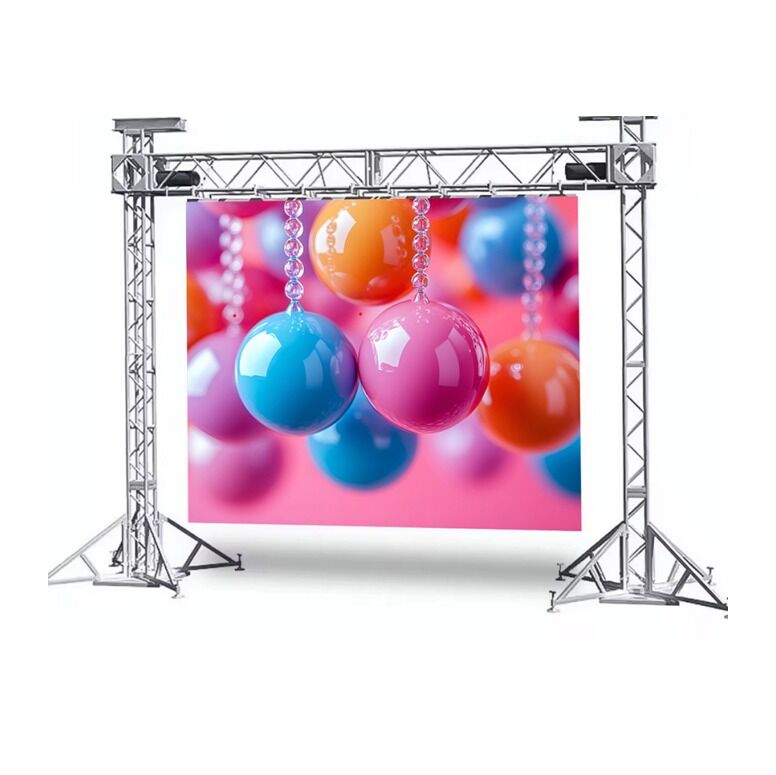

Outdoor Full Color LED Display Screen
High-performance outdoor LED display screens available in multiple pixel pitches with NOVA Star control system, suitable for concerts and large-scale events.
Technical Specifications
| Specification | 4mm | 5mm | 6.67mm | 8mm |
|---|---|---|---|---|
| Pixel Pitch | 4mm | 5mm | 6.67mm | 8mm |

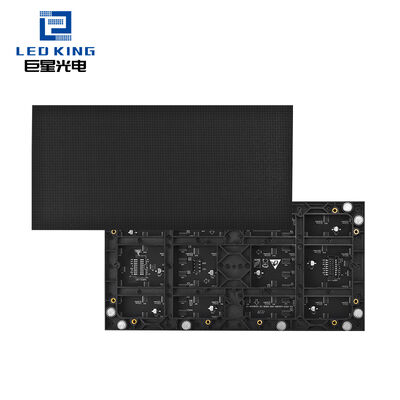

| LED Module Size | 320 x 160mm | 320 x 160mm | 320 x 160mm | 320 x 160mm |

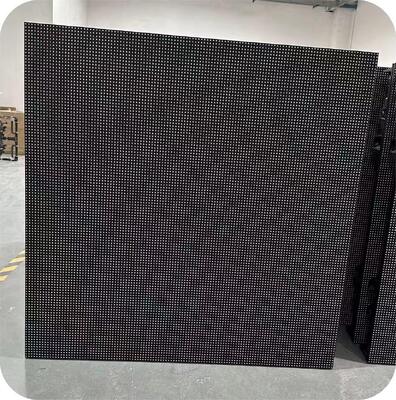

| LED Panel Size | 960 x 960mm | 960 x 960mm | 960 x 960mm | 960 x 960mm |
| LED Panel Weight | 40KG | 40KG | 40KG | 40KG |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Drive Method | 1/5 Scan | 1/5 Scan | 1/6 Scan | 1/5 Scan |
| Brightness | 4800nits | 5000-5500nits | 4000-5000nits | 4800nits |
| Power Supply | Chuanglian/G-energy/MeanWell | Chuanglian/G-energy/MeanWell | Chuanglian/G-energy/MeanWell | Chuanglian/G-energy/MeanWell |
| Receiving Card | Novastar/Linsn/Colorlight/Huidu | Novastar/Linsn/Colorlight/Huidu | Novastar/Linsn/Colorlight/Huidu | Novastar/Linsn/Colorlight/Huidu |
| Working Temperature | -10℃~+45℃ | -10℃~+45℃ | -10℃~+45℃ | -10℃~+45℃ |
| Best Viewing Distance | 4-40m | 5-40m | 6-40m | 8-50m |
| Best Viewing Angle | H: 170°; V:120° | H: 170°; V:120° | H: 140°; V:120° | H: 140°; V:120° |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Working System | Windows | Windows | Windows | Windows |
Most models feature Kinglight LEDs and 3840Hz refresh rate. For additional pixel pitches and technical details, please contact us.
Frequently Asked Questions
What control system do you use and how does it work?
We use Nova Taurus Series asynchronous control system that supports cluster play and management. The system is compatible with APP/Phone/WIFI/iPad/Laptop/PC/Cloud control, making it easy and convenient to operate.
Can I place a sample order for LED screens?
Yes, we welcome sample orders to test and verify quality. Mixed samples are acceptable for evaluation purposes.
Is it possible to print my logo on the product?
Yes, we offer logo customization. Please inform us formally before production and confirm the design based on our provided samples.
What services do you provide?
Our comprehensive service package includes:
• One-to-one sales engineer responsibility system
• Project analysis and optimal solution provision
• Complete order tracking with detailed updates
• Installation and usage guidance
• Ongoing support and after-sales service
• One-to-one sales engineer responsibility system
• Project analysis and optimal solution provision
• Complete order tracking with detailed updates
• Installation and usage guidance
• Ongoing support and after-sales service
What is your delivery time?
Generally, delivery takes 7-15 days after receiving your deposit. Specific delivery times depend on the items ordered and order quantity.
What is your warranty policy?
We offer a 2-year warranty covering structure design, installation issues, system problems, and usage guidance. Our professional after-sales team and dedicated sales engineer will assist with any questions after your order placement.
