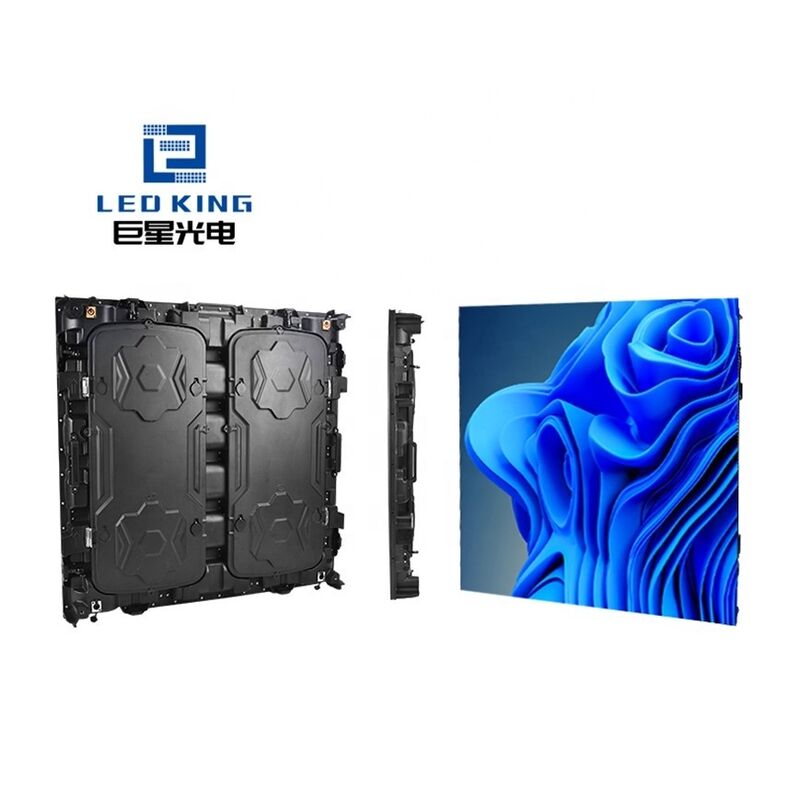

Outdoor LED Display Screen with Diecasting Aluminum Cabin 3.91mm Pixel Pitch and Front/Back Service
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LED KING |
| Model Number: | Outdoor P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | $157 |
|
Detail Information |
|||
| Pixel Pitch: | 3.91mm | Pixel Density: | 256*256dot |
|---|---|---|---|
| Pixel Resolution: | 64 Dot * 64 Dot | Max Power Consumption: | 40W |
| Panel Weight: | 0.6KG | Hub Connecting: | HUB75-E |
| Material: | Diecasting Aluminum Cabinet | Maintenance Method: | Front/Back Service |
| Refresh Rate: | 3840Hz | Drive Method: | 1/16 Scan |
| Brightness: | 1200nits | Working Temperature: | -20℃~+50℃ |
| Best Viewing Distance: | 3-40m | Best Viewing Angle: | H: 140°; V:140° |
| Life Span: | 100,000 Hours | ||
| Highlight: | Diecasting Aluminum Cabin LED Display Screen,3.91mm Pixel Pitch Outdoor LED Screen,Front/Back Service LED Video Wall |
||
Product Description
Outdoor Rental LED Display Case
Durable portable LED display case featuring die-cast aluminum cabin construction, designed for outdoor rental applications with multiple pixel pitch options including P2.5, P3.91, and P4.81.
Key Specifications
| Pixel Resolution | 64 dot × 64 dot |
| Maximum Power Consumption | 40W |
| Panel Weight | 0.6KG |
| Maintenance Method | Front/Back Service |
Technical Specifications by Pixel Pitch
| Parameter | P2.6mm | P2.976mm | P3.91mm | P4.81mm |
|---|---|---|---|---|
| LED Module Size | 250 × 250mm | 250 × 250mm | 250 × 250mm | 250 × 250mm |
| LED Panel Size | 500 × 500mm | 500 × 500mm | 500 × 500mm / 500×1000mm | 500 × 500mm |
| LED Panel Weight | 7.3KG | 7.3KG | 7.3KG/13KG | 7.3KG |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Drive Method | 1/32 Scan | 1/28 Scan | 1/16 Scan | 1/16 Scan |
| Brightness | 1000nits | 1000nits | 1200nits | 1200nits |
| Power Supply | Chuanglian/G-energy/MeanWell | Chuanglian/G-energy/MeanWell | Chuanglian/G-energy/MeanWell | Chuanglian/G-energy/MeanWell |
| Receiving Card | Novastar/Linsn/Colorlight/Huidu | Novastar/Linsn/Colorlight/Huidu | Novastar/Linsn/Colorlight/Huidu | Novastar/Linsn/Colorlight/Huidu |
| Max Power Consumption | 200W/pcs | 200W/pcs | 200W/pcs | 200W/pcs |
| Working Temperature | -20℃ to +50℃ | -20℃ to +50℃ | -20℃ to +50℃ | -20℃ to +50℃ |
| Best Viewing Distance | 2-25m | 2.5-30m | 3-40m | 3-8m |
| Best Viewing Angle | H: 140°; V: 140° | H: 140°; V: 140° | H: 140°; V: 140° | H: 140°; V: 140° |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Working System | Windows | Windows | Windows | Windows |
Most models feature Kinglight LEDs and 3840Hz refresh rate. For additional pixel pitch options and technical details, please contact us.
Frequently Asked Questions
Q1: What is the control system? How is it?
A: We use Nova Taurus Series asynchronous control system. Supports cluster play and management. Compatible with APP/Phone/WIFI/iPad/Laptop/PC/Cloud control. Easy and convenient to operate.
Q2: Can I have a sample order for LED screen?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q3: Is it OK to print my logo on product?
A: Yes. Please inform us formally before production and confirm the design first based on our sample.
Q4: What is your best service?
- One-to-one sales engineer to customer responsibility system
- Understand your project and provide the best solution
- Track your order and keep you informed of each step and detail
- Provide installation and usage guidance
- Monitor subsequent screen usage and ensure comprehensive after-sales service
Q5: How about your delivery time?
A: Generally 7-15 days after receiving your deposit. Specific delivery time depends on items and order quantity.
Q6: How about your Warranty Term?
A: 2-year warranty. Covers structure design, installation problems, system issues, and usage guidance. Our professional after-sales team will solve any questions after you place an order, and your exclusive sales engineer will help you overcome any problems.
Want to Know more details about this product
