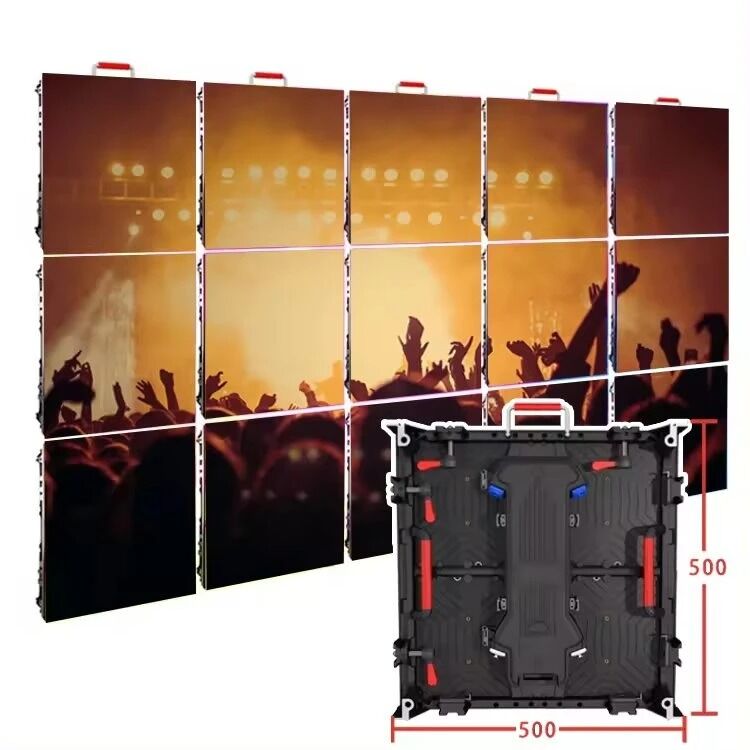

P3.91 mm Pixel Pitch IP65 Waterproof Outdoor LED Display Screen with 1920Hz-3840Hz Refresh Rate for Rental LED Video Wall
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING or OEM & ODM |
| Model Number: | RO-P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | CN¥993.15-1,130.14 |
|
Detail Information |
|||
| Pixel Pitch: | 3.91mm | Pixel Density: | 65536 Dot/m2 |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B | Max Power Consumption: | 40W |
| Panel Weight: | 0.6KG | Cabinet Size: | 500*1000mm*90mm, 500*500*90mm |
| Cabinet Resolution: | 128 Dot * 256 Dot, 128*128 Dot | Quantity Of Panel: | 8pcs, 4pcs |
| Hub Connecting: | HUB75-E | Max Power Capacity: | 1200 W/m2 |
| Average Power: | 600 W/m2 | Refresh Frequency: | 1920-3840 HZ/S |
| Brightness: | 4000 Cd/m2 | Best Viewing Distance: | 3-30M |
| Operating Temperature: | -20C°~60C° | ||
| Highlight: | P3.91 mm Pixel Pitch Outdoor LED Display Screen,IP65 Waterproof Rental LED Screen,1920Hz-3840Hz Refresh Rate LED Video Wall |
||
Product Description
P3.91 Outdoor Stage Rental LED Screen
High-performance outdoor rental LED display designed for stage backgrounds and large-scale events with excellent visibility and durability.
Technical Specifications Comparison
Module Specifications
| Item | Outdoor P3 | Outdoor P3.91 | Outdoor P4 |
|---|---|---|---|
| Panel Dimension | 192mm(W) × 192mm(H) | 250mm(W) × 250mm(H) | 256mm(W) × 128mm(H) |
| Pixel Pitch | 3mm | 3.91mm | 4mm |
| Pixel Density | 111111 dot/m² | 65536 dot/m² | 62500 dot/m² |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Specification | SMD1921 | SMD1921 | SMD1921 |
| Pixel Resolution | 64 dot × 64 dot | 64 dot × 64 dot | 64 dot × 32 dot |
| Max Power Consumption | 30W | 40W | 32W |
| Panel Weight | 0.55KG | 0.6KG | 0.3KG |
Cabinet Specifications
| Item | Outdoor P3 | Outdoor P3.91 | Outdoor P4 |
|---|---|---|---|
| Cabinet Size | 576mm×576mm×90mm, 768×768×90mm | 500×1000mm×90mm, 500×500×90mm | 1024mm×768mm×90mm |
| Cabinet Resolution | 192 dot × 192 dot, 256 dot × 256 dot | 128 dot × 256 dot, 128×128 dot | 256 dot × 192 dot |
| Quantity of Panel | 9pcs, 16pcs | 8pcs, 4pcs | 24pcs |
| Hub Connecting | HUB75-E | HUB75-E | HUB75-E |
| Cabinet Material | Die-casting aluminum cabinet | Die-casting aluminum cabinet | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service | Front/Back service | Front/Back service |
| Best Viewing Angle | 140°/120° | 170°/120° | 170°/120° |
| Screen Power Supply | AC110V/220V - 5V60A | AC110V/220V - 5V60A | AC110V/220V - 5V60A |
| Max Power Capacity | 1100 W/m² | 1200 W/m² | 1550 W/m² |
| Average Power | 550 W/m² | 600 W/m² | 780 W/m² |
Technical Signal Index
| Item | Outdoor P3 | Outdoor P3.91 | Outdoor P4 |
|---|---|---|---|
| Driving IC | ICN 2037 / 2153 | ICN 2037 / 2153 | ICN 2037 / 2153 |
| Scan Rate | 1/16S | 1/16S | 1/8S |
| Refresh Frequency | 1920-3840 HZ/S | 1920-3840 HZ/S | 1920-3840 HZ/S |
| Display Color | 4096×4096×4096 | 4096×4096×4096 | 4096×4096×4096 |
| Brightness | 4500-5000 cd/m² | 4000 cd/m² | 5500-6000 cd/m² |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Control Distance | < 100M | < 100M | < 100M |
| Best Viewing Distance | 3-30M | 3-30M | 4-40M |
| Operating Temperature | -10°C to 45°C | -20°C to 60°C | -10°C to 45°C |
| Operating Humidity | 10-90% | 10-90% | 10-90% |
| IP Protective Index | IP65 | IP65 | IP65 |
Customization Available: Most units feature Kinglight technology and 3840Hz refresh rate. For additional pixel pitch options and detailed technical specifications, please contact our technical team.
