Outdoor LED Display Screen IP65 Waterproof with 1920Hz-3840Hz Refresh Rate and 100000 Hours Life Span
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING |
| Model Number: | LEDKING-3D |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $317-337 |
|
Detail Information |
|||
| Refresh Rate: | 1920Hz-3840Hz | Cabinet Material: | Die Cast Aluminum / Waterproof Iron |
|---|---|---|---|
| Control System: | NOVA Star | Service Access: | Front/Rear |
| Life Span: | 100000Hours | Pixel Pitch: | 8mm, 10mm |
| Pixel Density: | 15625 Dot/m2, 10000 Dot/m2 | Pixel Configuration: | 1R1G1B |
| Max Power Consumption: | 28W, 40W, 45W | Cabinet Size: | 768mm*1280mm*140mm, 960mm*960mm*90mm |
| Best Viewing Angle: | 140/120 | Screen Power Supply: | AC110V/220V - 5V40A, AC110V/220V - 5V60A, AC220V - 5V60A |
| Brightness: | 5000mcd/m2, 4800mcd/m2 | Operating Temperature: | -10C°~45C° |
| IP Protective Index: | IP65 | ||
| Highlight: | IP65 Waterproof LED Video Wall,1920Hz-3840Hz Refresh Rate Digital Billboard,100000 Hours Life Span Outdoor LED Display Screen |
||
Product Description
Outdoor Fixed Digital Video LED Video Wall
Waterproof 3D billboard advertising LED display screen designed for high-visibility outdoor applications.

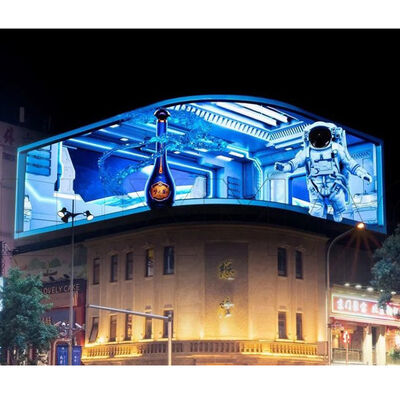

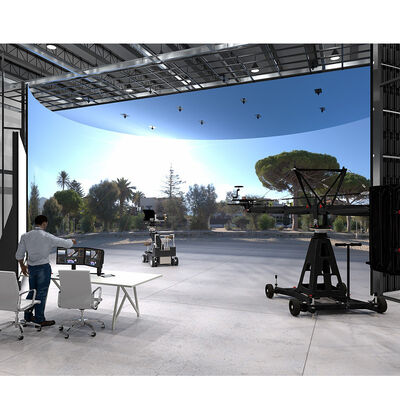

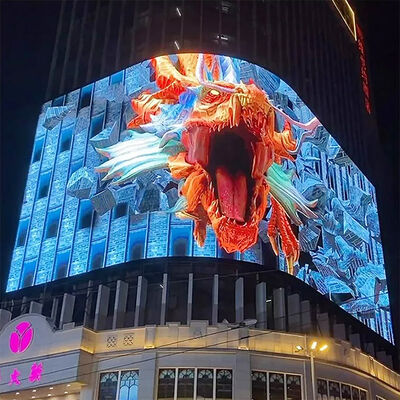

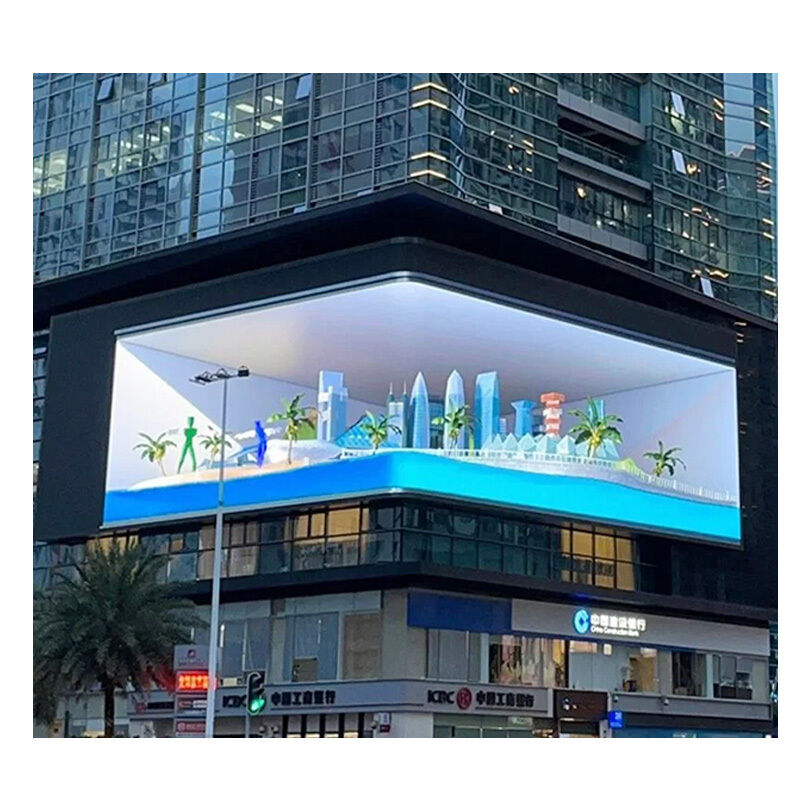

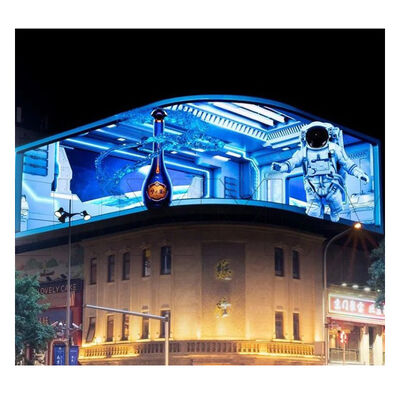

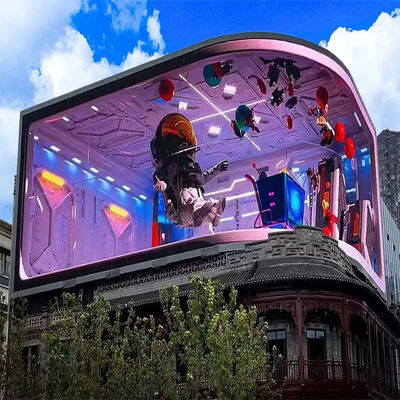

Product Gallery
Technical Specifications
Module Specifications
| Item | Outdoor P8 | Outdoor P8 | Outdoor P10 |
|---|---|---|---|
| Panel Dimension | 256mm(W) × 128mm(H) | 320mm(W) × 160mm(H) | 320mm(W) × 160mm(H) |
| Pixel Pitch | 8mm | 8mm | 10mm |
| Pixel Density | 15625 dot/m² | 15625 dot/m² | 10000 dot/m² |
| Pixel Configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Specification | SMD3535 | SMD3535 | SMD3535 |
| Pixel Resolution | 32 dot × 16 dot | 40 dot × 20 dot | 32 dot × 16 dot |
| Max Power Consumption | 28W | 40W | 45W |
| Panel Weight | 0.3KG | 0.5KG | 0.55KG |
Cabinet Specifications
| Item | Outdoor P8 | Outdoor P8 | Outdoor P10 |
|---|---|---|---|
| Cabinet Size | 768mm × 1280mm × 140mm, back service | 960mm × 960mm × 90mm | 960mm × 960mm × 90mm |
| Cabinet Resolution | 96 dot × 160 dot | 120 dot × 120 dot | 96 dot × 96 dot |
| Quantity of Panel | 30pcs | 18pcs | 18pcs |
| Hub Connecting | HUB75-E | HUB75-E | HUB75-E |
| Cabinet Material | Simple iron / waterproof iron cabinet | Die-casting aluminum cabinet | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service | Front/Back service | Front/Back service |
| Best Viewing Angle | 140°/120° | 140°/120° | 140°/120° |
| Screen Power Supply | AC110V/220V - 5V40A | AC110V/220V - 5V60A | AC220V - 5V60A |
| Max Power Capacity | 1020W/m² | 976W/m² | 1300W/m² |
| Average Power | 510W/m² | 488W/m² | 650W/m² |
Technical Signal Index
| Item | Outdoor P8 | Outdoor P8 | Outdoor P10 |
|---|---|---|---|
| Driving IC | ICN 2037 / 2153 | ICN 2037 / 2153 | ICN 2037 |
| Scan Rate | 1/4S | 1/5S | 1/2S |
| Refresh Frequency | 1920-3840 HZ/S | 1920-3840 HZ/S | 1920 HZ/S |
| Display Color | 4096×4096×4096 | 4096×4096×4096 | 4096×4096×4096 |
| Brightness | 5000mcd/m² | 4800mcd/m² | 5000mcd/m² |
| Life Span | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Control Distance | < 100M | < 100M | < 100M |
| Best Viewing Distance | 8-50M | 8-50M | 10-50M |
| Operating Temperature | -10°C to 45°C | -10°C to 45°C | -10°C to 45°C |
| Operating Humidity | 10-90% | 10-90% | 10-90% |
| IP Protective Index | IP65 | IP65 | IP65 |
Features Kinglight components and 3840Hz refresh rate. For additional pixel pitch options and technical details, please contact our technical team.
