Outdoor LED Display Screen with P8 Pixel Pitch 256*128 Resolution and 1920Hz-3840Hz Refresh Rate for Versatile Applications
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | LEDKING or OEM & ODM |
| Model Number: | RO-P8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | $379-399 |
|
Detail Information |
|||
| Pixel Pitch: | 8mm | Pixel Density: | 15625 Dot/m2 |
|---|---|---|---|
| Pixel Configuration: | 1R1G1B | Panel Dimension: | 256mm(W) * 128mm(H) |
| Max Power Consumption: | 28W | Panel Weight: | 0.3KG |
| Cabinet Size: | 768mm*1280mm*140mm | Cabinet Resolution: | 96dot * 160 Dot |
| Quantity Of Panel: | 30pcs | Screen Power Supply: | AC110V/220V - 5V40A |
| Max Power Capacity: | 1020W/m2 | Brightness: | 5000mcd/m2 |
| Refresh Frequency: | 1920-3840 HZ/S | Operating Temperature: | -10C°~45C° |
| IP Protective Index: | IP65 | ||
| Highlight: | P8 Pixel Pitch LED Video Wall,256*128 Resolution Outdoor LED Display Screen,1920Hz-3840Hz Refresh Rate Rental LED Screen |
||
Product Description

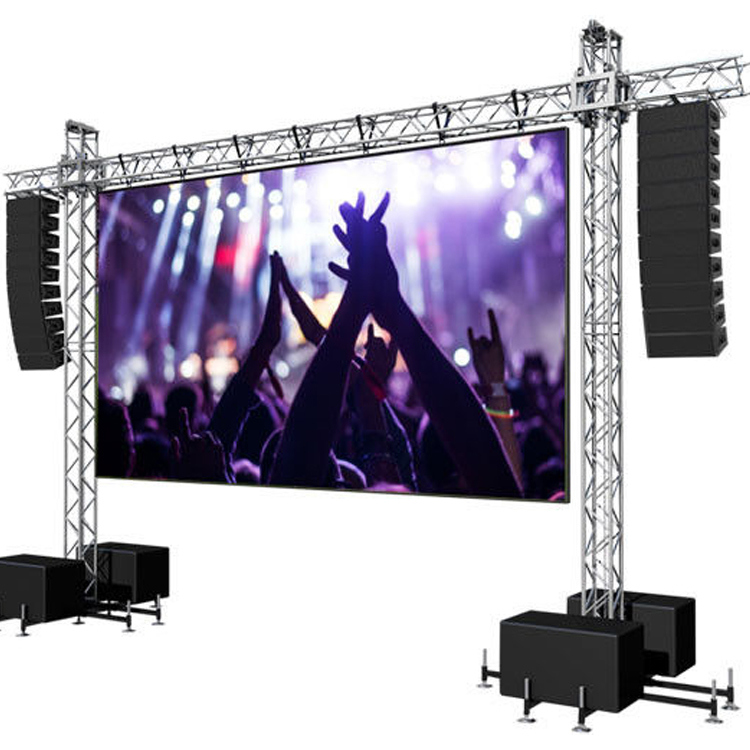

Outdoor P8 1024×7680mm Die-Casting Aluminum Rental LED Display
High-performance outdoor and indoor LED screen solution for events, featuring durable die-casting aluminum construction.
Product Specifications
Module Specifications
| Feature | Outdoor P6.67 | Outdoor P8 | Outdoor P8 |
|---|---|---|---|
| Panel Dimension | 320mm(W) × 160mm(H) | 256mm(W) × 128mm(H) | 320mm(W) × 160mm(H) |
| Pixel pitch | 6.67mm | 8mm | 8mm |
| Pixel Density | 22477 dot/m² | 15625 dot/m² | 15625 dot/m² |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Specification | SMD3535 | SMD3535 | SMD3535 |
| Pixel resolution | 48 dot × 48 dot | 32 dot × 16 dot | 40 dot × 20 dot |
| Max power consumption | 43W | 28W | 40W |
| Panel weight | 0.45KG | 0.3KG | 0.5KG |
Cabinet Specifications
| Feature | Outdoor P6.67 | Outdoor P8 | Outdoor P8 |
|---|---|---|---|
| Cabinet size | 960mm×960mm×90mm | 768mm×1280mm×140mm, back service | 960mm×960mm×90mm |
| Cabinet Resolution | 144dot×144dot | 96dot × 160 dot | 120dot × 120 dot |
| Quantity of panel | 18pcs | 30pcs | 18pcs |
| Hub connecting | HUB75-E | HUB75-E | HUB75-E |
| Cabinet Material | Die-casting aluminum cabinet | Simple iron / waterproof iron cabinet | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service | Front/Back service | Front/Back service |
| Best viewing angle | 140/120 | 140/120 | 140/120 |
| Screen power supply | AC110V/220V - 5V60A | AC110V/220V - 5V40A | AC110V/220V - 5V60A |
| Max power capacity | 1350W/m² | 1020W/m² | 976W/m² |
| Average power | 675W/m² | 510W/m² | 488W/m² |
Technical Specifications
| Feature | Outdoor P6.67 | Outdoor P8 | Outdoor P8 |
|---|---|---|---|
| Driving IC | ICN 2037 / 2153 | ICN 2037 / 2153 | ICN 2037 / 2153 |
| Scan Rate | 1/6S | 1/4S | 1/5S |
| Refresh frequency | 1920-3840 HZ/S | 1920-3840 HZ/S | 1920-3840 HZ/S |
| Display color | 4096×4096×4096 | 4096×4096×4096 | 4096×4096×4096 |
| Brightness | 4000-5000 cd/m² | 5000mcd/m² | 4800mcd/m² |
| Life span | 100000 Hours | 100000 Hours | 100000 Hours |
| Control distance | < 100M | < 100M | < 100M |
| Best viewing distance | 6-40M | 8-50M | 8-50M |
| Operating temperature | -10°C~45°C | -10°C~45°C | -10°C~45°C |
| Operating Humidity | 10-90% | 10-90% | 10-90% |
| IP protective index | IP65 | IP65 | IP65 |
For custom configurations and additional technical details, please contact our team.
